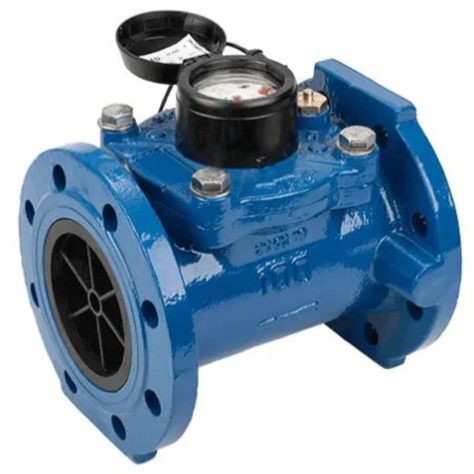

Woltman WPH80P 80 mm (3 inch) turbine water flow meter with pulse output Table E flanges 666 lpm

Woltman WPH80P 80 mm (3 inch) turbine water flow meter with pulse output
Table E flanges
666 lpm nominal flow rate
Description:
WPH Woltman removable meters are suitable for measuring the water in a relatively stable flow rate, such as mine factories and main supply line of water
Conforms to ISO4064 class B.
Characteristics:
Removable measuring inserts are divided into four categories: DN40-65, DN80-200, DN250, easy for maintenance
Low pressure loss, high flow capacity, suitable for measuring supply line of water
Magnet-driven dry type structure, neat counter displaying clearly
360˚ rotating counter, convenient for reading
6 enlarged or 7 normal figure rolls to show readings
Epoxy resin powder coating and stainless steel fasteners, rust proofing to the largest exteent, extending the service life
Wearable shaft and bearing system, prominently strengthen the meters’ long term stability, reliability and maximum durable flow rate
Can be equipped with signal-transmititng counter, realising outputs of multiple pulse signals (single/double/ triple reed switch, light-emitting diode (opto), metal sensor (namur), Hall component)
Can be equipped with unremovable outer cover
Working conditions:
Water temperature: cold meter < 50˚C hot meter < 90˚C
(DN40-200)
Water pressure: < 1.0
Installation modes:
Straight pipe is required
Need to add a strainer
Parallel/vertical installation
