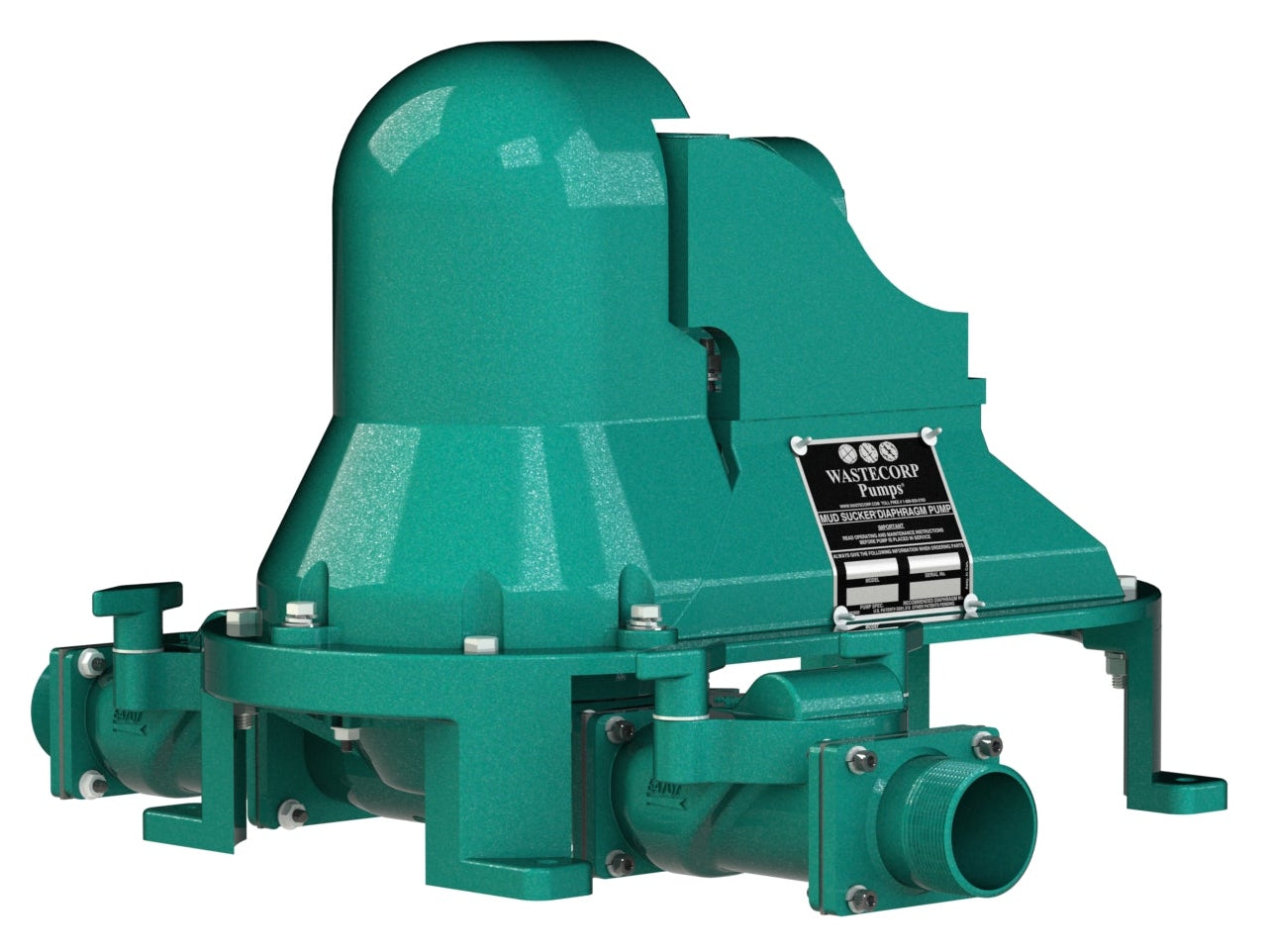

Wastecorp 2FAC-HP-DD Mud Sucker 2 inch hydraulic driven diaphragm pump 150 lpm 15 m head
Couldn't load pickup availability
Regular price
$14,037.00 NZD
excl GST
WasteCorp 2FAC-HP-DD Mud Sucker 2 inch hydraulic driven diaphragm pump
2 inch ports
150 lpm
15 m head
Suction:
6 m vertical or 23 m horizontal (with foot valve)
20 ft vertical or 75 ft horizontal (with foot valve)
70 rpm aprox
Solids handling to 38 mm (1-1/2 inch)
Emergency pressure relief valve:
Wastecorp Mud Sucker 2FAC-HP includes as standard an emergency pressure relief valve
Since a diaphragm pump is a positive displacement pump, a pressure relief valve reduces the chances of damage in an over pressurization event
Hydraulic requirement:
69 bar @ 19 lpm (1000 psi @ 5 gpm)
Max liquid temperature:
60°C (140°F) continuous
Materials:
Diaphragm - 178 mm (7 inch) OD Neoprene with reinforcement
Pump body - aluminium A356 heat treated
Pump rod - AISI 12L14 carbon steel
Crank arm - AISI 12L14 carbon steel
Description:
The 2FAC-HP series ships complete with heavy duty EPDM flapper valves and rugged diaphragms designed to enhance fluid transfer
The 2FAC-HP is capable of up to 20 GPM fluid handling capabilities
ADVANCED TECHNOLOGY FLAPPERS
Wastecorp’s exclusive EPDM flapper material is designed to pump the tough stuff including general wastewater, septic waste, sewage, waste oil, food processing waste and much more
HYDRAULIC DIAPHRAGM PUMP PROTECTION
The Mud Sucker 2FAC-HP includes a standard emergency pressure relief valve
Since a diaphragm pump is also a positive displacement pump, a pressure relief valve reduces the chances of damage in an over pressurization event
PRODUCTIVITY ENHANCING ACCESSORIES
Genuine Mud Sucker accessories like wheel kits, trailer mounts, lifting bails, non-collapsible hoses, pump strainers are also available for you 2FAC-HP
STRONG PUMP SHAFTS
Stronger shafts designed for long life cycles
MUD SUCKER OPERATOR SAFETY
Ships complete with safety guard. Operator does not come into contact with moving shafts as long as the guards are in place.
PIPING OPTIONS
Select from several available options designed for the needs of your specific application.
HEAVY DUTY DIAPHRAGMS
Built to outlast.
Wastecorp diaphragm accept the most punishing pumping conditions
2 inch ports
150 lpm
15 m head
Suction:
6 m vertical or 23 m horizontal (with foot valve)
20 ft vertical or 75 ft horizontal (with foot valve)
70 rpm aprox
Solids handling to 38 mm (1-1/2 inch)
Emergency pressure relief valve:
Wastecorp Mud Sucker 2FAC-HP includes as standard an emergency pressure relief valve
Since a diaphragm pump is a positive displacement pump, a pressure relief valve reduces the chances of damage in an over pressurization event
Hydraulic requirement:
69 bar @ 19 lpm (1000 psi @ 5 gpm)
Max liquid temperature:
60°C (140°F) continuous
Materials:
Diaphragm - 178 mm (7 inch) OD Neoprene with reinforcement
Pump body - aluminium A356 heat treated
Pump rod - AISI 12L14 carbon steel
Crank arm - AISI 12L14 carbon steel
Description:
The 2FAC-HP series ships complete with heavy duty EPDM flapper valves and rugged diaphragms designed to enhance fluid transfer
The 2FAC-HP is capable of up to 20 GPM fluid handling capabilities
ADVANCED TECHNOLOGY FLAPPERS
Wastecorp’s exclusive EPDM flapper material is designed to pump the tough stuff including general wastewater, septic waste, sewage, waste oil, food processing waste and much more
HYDRAULIC DIAPHRAGM PUMP PROTECTION
The Mud Sucker 2FAC-HP includes a standard emergency pressure relief valve
Since a diaphragm pump is also a positive displacement pump, a pressure relief valve reduces the chances of damage in an over pressurization event
PRODUCTIVITY ENHANCING ACCESSORIES
Genuine Mud Sucker accessories like wheel kits, trailer mounts, lifting bails, non-collapsible hoses, pump strainers are also available for you 2FAC-HP
STRONG PUMP SHAFTS
Stronger shafts designed for long life cycles
MUD SUCKER OPERATOR SAFETY
Ships complete with safety guard. Operator does not come into contact with moving shafts as long as the guards are in place.
PIPING OPTIONS
Select from several available options designed for the needs of your specific application.
HEAVY DUTY DIAPHRAGMS
Built to outlast.
Wastecorp diaphragm accept the most punishing pumping conditions
