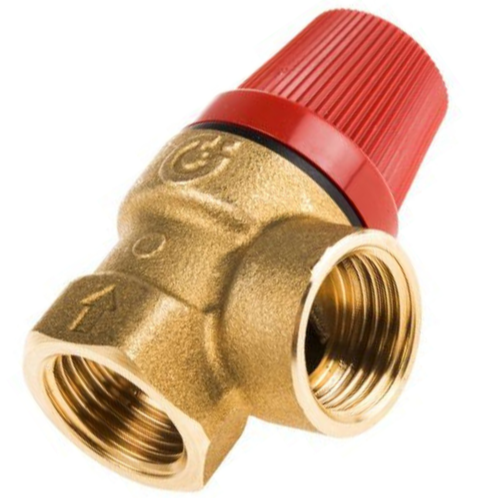

T-Rex VPR Altecnic 1/2 inch 6 bar (87 psi) brass pressure safety relief valve
Couldn't load pickup availability
Regular price
$313.00 NZD
excl GST
T-Rex VPR Altecnic 6 bar (87 psi) brass pressure safety relief valve
1/2 inch ports
Used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect boiler and other components
Valve is selected for the required set pressure
When discharge pressure is reached, valve opens, discharging to atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity
Temperature range: 5 to 110°C
PED category: IV
WRAS approved product
Body Brass: BS EN 12165 CW617N
Cover Brass: BS EN 12165 CW617N
Stem Brass: BS EN 12164 CW614N
Diaphragm: EPDM
Spring: Stainless steel
Control Knob: ABS polymer
Carton dimensions:
70 x 45 x 35 mm (L x W x H)
1/2 inch ports
Used in domestic hot water systems to protect the hot water cylinder and in heating systems to protect boiler and other components
Valve is selected for the required set pressure
When discharge pressure is reached, valve opens, discharging to atmosphere, preventing the pressure within the system reaching levels which would be dangerous for the boiler, hot water storage cylinder and any personnel in the adjacent vicinity
Temperature range: 5 to 110°C
PED category: IV
WRAS approved product
Body Brass: BS EN 12165 CW617N
Cover Brass: BS EN 12165 CW617N
Stem Brass: BS EN 12164 CW614N
Diaphragm: EPDM
Spring: Stainless steel
Control Knob: ABS polymer
Carton dimensions:
70 x 45 x 35 mm (L x W x H)
