Sotera 12v Hytrel diaphragm pump kit for oil and diesel with 6 m x 25 mm (1 inch) hose and dispensing nozzle

Sotera 12v Hytrel diaphragm pump for oil and diesel with 6 m x 25 mm (1 inch) hose and nozzle kit

- 1 inch NPT(F) ports

- 2 m power cable kit with battery alligator clamps

- OK to run dry

- self-priming to 3 m vertical depth

- 1/4 hp electric motor 12 amps max

- thermal overload safety protection

Bare pump performance:

- solids handling to 2.5 mm

- self-priming to 3 m (10 ft)

- 1.03 bar (15 psi)

- 49 lpm (13 gpm)

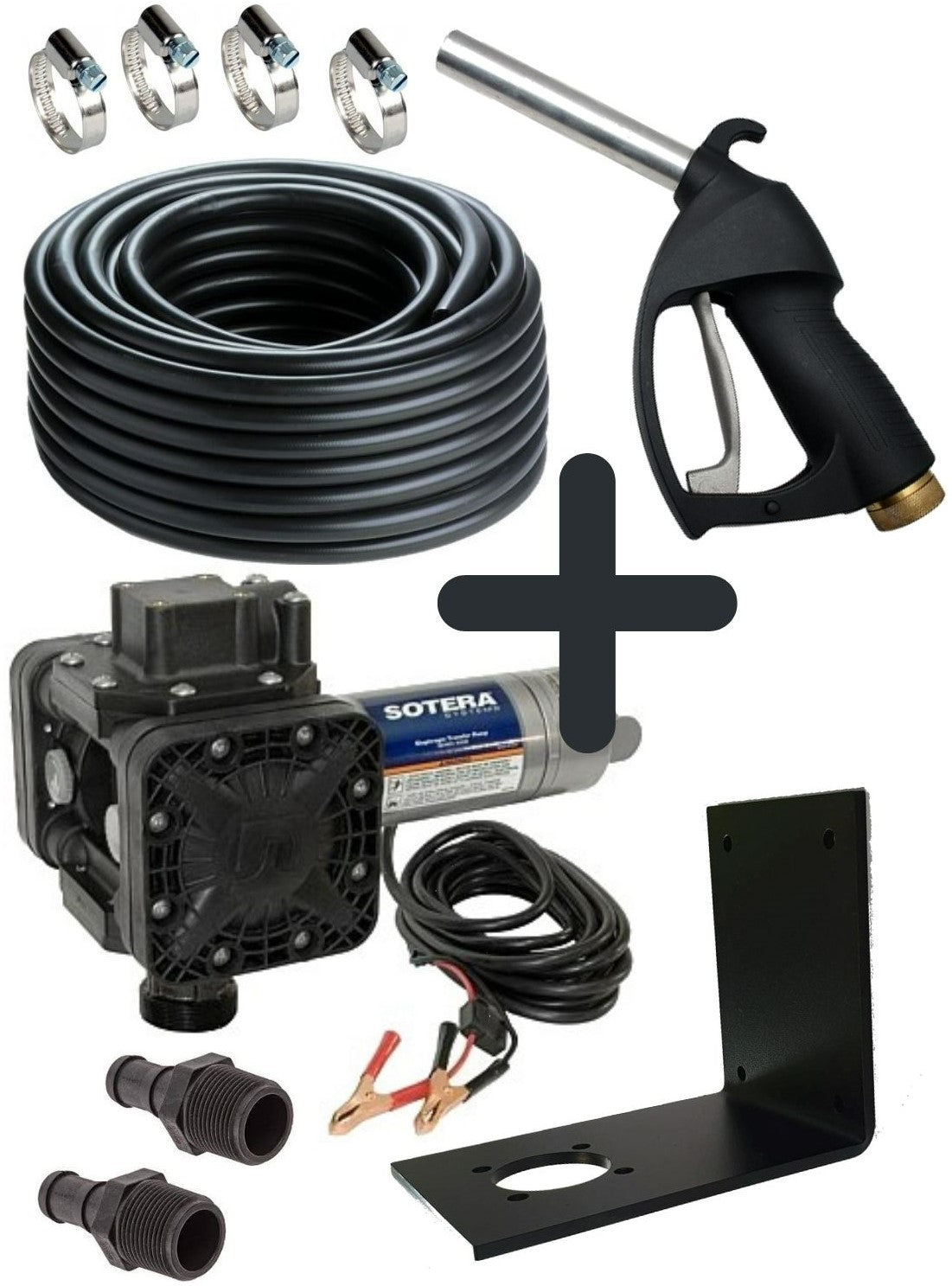

Kit includes:

1 x Sotera 12v Hytrel diaphragm pump for oil and diesel 1 inch NPT(F) 49 lpm (code 21.7002H)

6 m x FoxHose 25 mm (1 inch) diesel and oil hose ISO R1307 (per metre) 10 bar 145 psi (code 13.4125-001)

1 x Piusi Self 3000 diesel nozzle 1 inch BSP(F) 25 mm spout (code 48.F0065000A)

4 x Hose clamp worm type for 25 mm (1 inch) SD hose (code 78.3366)

1 x Brass hose fitting 1 inch BSP(M) x 25 mm (1 inch) tail (code 12.3041)

2 x Banjo poly hose tail 1 inch NPT(M) x 25 mm (code 28.HB100)

1 x Sotera M7167 400 series pump mounting elbow bracket 65 x 130 x 190 mm L x W x H (code M7167)

Pump materials:

- Polypropylene body

- Hytrel diaphragms

- Viton seals

Crankcase oil:

- SAE30 engine oil or similar

- oil capacity aprox 0.5 litres

Applications include:

- oil, waste oil and diesel fuel etc

Bare pump dimensions:

- 140 x 83 x 127 mm (L x W x H)
