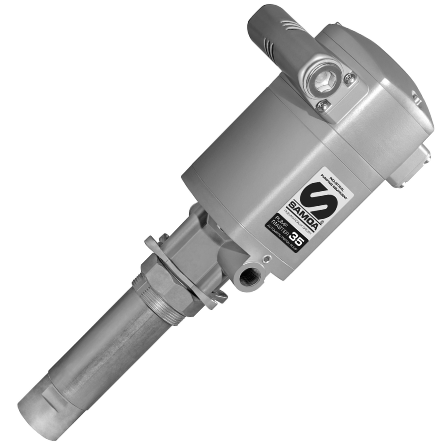

Samoa 535530 PumpMaster PM35 oil pump 5:1 ratio universal stub with 200 mm tube 30 lpm 60 bar (875 psi)

Samoa 535530 PumpMaster PM35 oil pump 5:1 ratio universal stub
Includes 200 mm tube
30 lpm
60 bar (875 psi)
Double acting air operated high pressure pump for oil transfer
Built-in port for optional pressure relief valve (code 609008)
Data:
Pump pressure ratio 5:1
Air pressure operating range 2 to 12 bar (30 to 175 psi)
Air consumption (1) 350 Nl/min (12.4 scfm)
Maximum fluid outlet pressure 60 bar (875 psi)
Air motor effective diameter 80 mm (3.15 inch)
Air motor stroke 80 mm (3.15 inch)
Delivery at 80 cpm 12 lpm (3.2 gpm)
Maximum free flow delivery 30 lpm (8 gpm)
Air inlet 3/8 inch BSP(F)
Fluid inlet 1-1/2 inch BSP(F)
Fluid outlet 1/2 inch BSP(F)
Wetted and seal materials: cast iron / hard chromed steel / steel / polyurethane / NBR
Noise level (2) 80 dB
Notes:
(1) Maximum air consumption with 5 psi (72 bar) air inlet pressure and 80 cpm
(2) Maximum noise level measured at 3 feet (1 m) from the pump, 100 psi (7 bar) air pressure and free delivery
Applications include:
- synthetic and mineral based oils
- hydraulic oil
- gear oil
- transmission fluid
- corrosion protection fluids
