RotoFluid FTSS stainless steel rotary gear pump rated @ 1440 rpm fluid temperatures to 200ºC 10 bar (145 psi) max

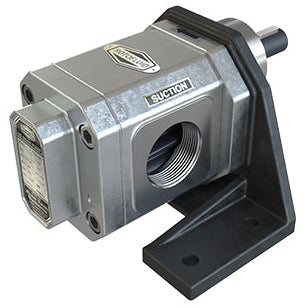

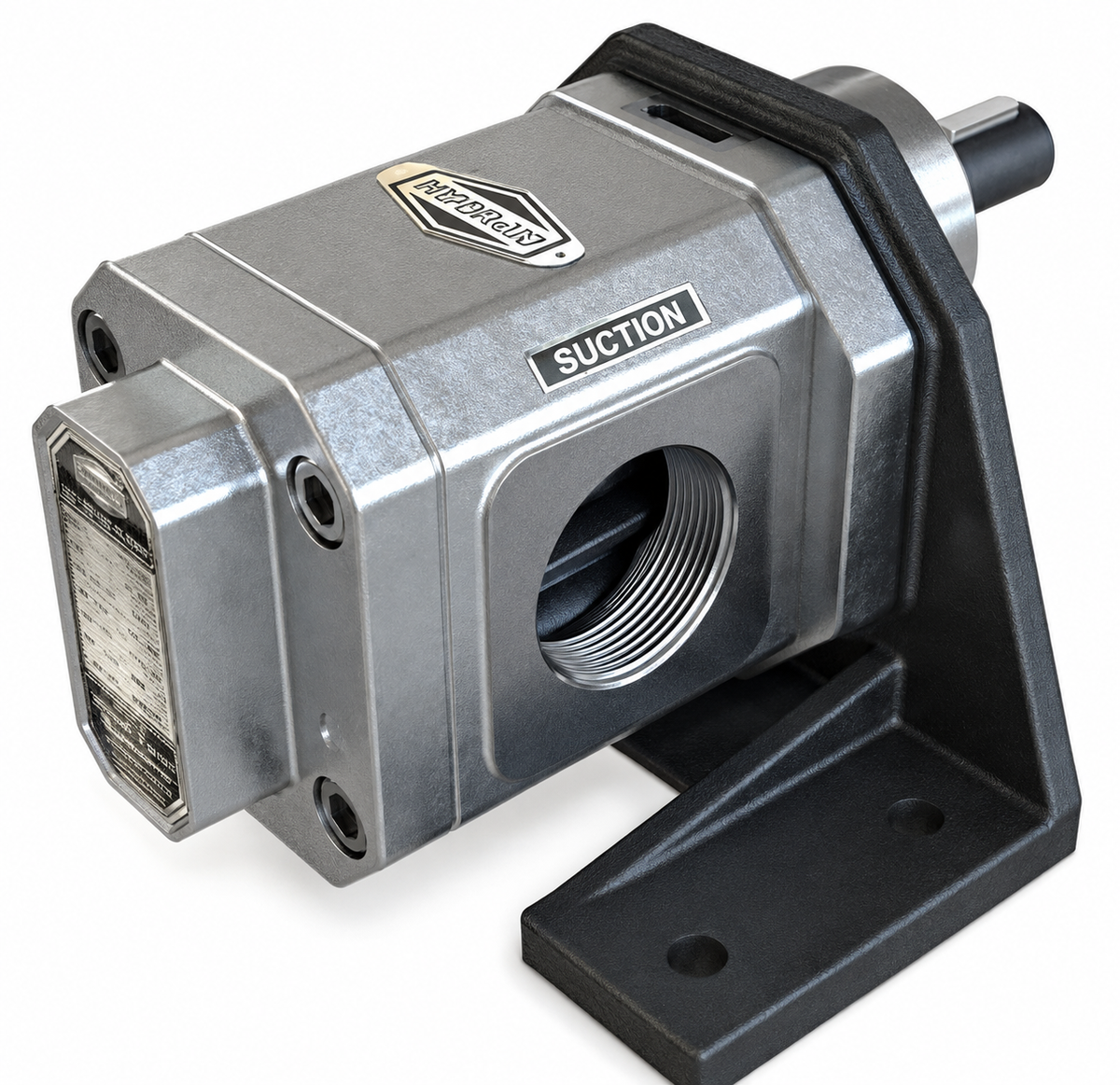

RotoFluid FTSS stainless steel rotary gear pump
- rated @ 1440 rpm
- fluid temperatures to 200ºC
- 10 bar (145 psi) max
- for transfer of corrosive chemicals and viscous liquids
- self priming
- foot mounting type
- positive displacement rotary gear pump
- three piece construction with investment cast
Features:
Due to three piece construction, it can be easily cleaned and maintained - that is why it is commonly used in all kinds of food industries
SS-316 stainless steel gear and shaft that are nitrated to give long life and trouble free performance
The shaft is supported on self lubricating type Teflon coated DU bushes
Shaft sealing with Teflon based “GFO” pack sealant and Viton oil seal
The right angle mounting brackets facilitates foot mounting of the pump on base plate with electric motor of appropriate ratings
These pumps have sturdy design and construction for long trouble free service
The suction and delivery connection are available in 1/4 inch to 3 inch size
These pumps can be operated up to pressure of 10 bar (10 kg/cm²) with 8 lpm to 500 lpm flow capacity
Suction lift of 1 m to 5 m at rated speed of 1440 rpm
These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum fluid temperatures up to 200ºC
Applications include:
Food product like ghee, butter, pulp, vegetable sauce
Pharmaceutical industries
Cosmetic industries
Dyes and resins
Chemical industries for corrosive viscose chemical
Dyeing and printing house
Special chemical and acid industries
