RotoFluid FTMS stainless steel rotary twin gear pump rated @ 1440 rpm 200ºc max fluid temperature 10 bar (145 psi) max

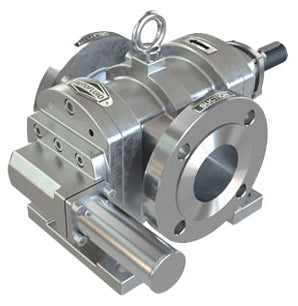

RotoFluid FTMS stainless steel rotary twin gear pump
10 bar (145 psi) max
Rated @ 1440 rpm
200ºc max fluid temperature
Heavy duty foot mounting type positive displacement rotary twin gear pump
Model “FTMS” having all stainless steel (SS-316) in four piece construction with investment cast
Due to four piece construction it can be easily cleanable and maintainable
These pumps having a double helical refined SS-316 gear shaft that are nitrated to give longer life
Due to double helical gear it prevent axial and side thrust which help to increase life and performance of pump
The Teflon coated dry running DU bush bearing, supported on bronze wearing plate, placed inside the pump casing
Alternatively bronze wearing plate cum bushes can also be provided for thicker viscous liquid application
The stuffing box is fitted with “GFO” pack sealant with provision to fit mechanical shaft seal
These pumps provide with add-on type pressure relief valve
The jacketing construction should be selected to facilitate the heating of the pump by steam or thermic fluid etc
These pumps having flange at the end of suction and delivery which are available in 1/2 inch to 6 inch size
These pumps can be operated up to pressure of 10 bar (10 kg/cm²) with 13 lpm to 1335 lpm flow capacity
These pumps are suitable for maximum temperature up to 200ºc and maximum viscosity up to 1,00,000 SSU
