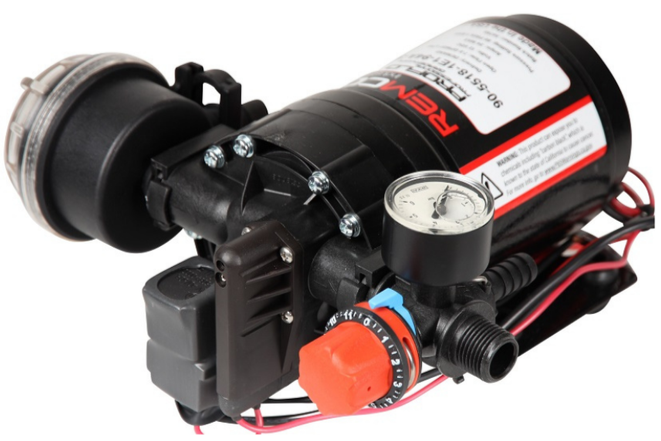

Remco ProFlo FatBoy 12v diaphragm pump kit with control valve and suction filter 26.5 lpm 6.9 bar (100 psi)
Couldn't load pickup availability
Remco ProFlo FatBoy 12v diaphragm pump kit
Model 5518-1I1-94A
5 chamber diaphragm type pump
3.6 m electric power cable
Demand pressure switch
OK to run dry
Performance:
26.5 lpm
6.9 bar (100 psi)
Self priming to 4 m (14 ft)
25 amps max
Ports:
3/4 inch Quick Attach ports
Includes:
Arag 962 control valve
Pressure gauge
Remco suction filter
1 x Remco 13 mm (1/2 inch) straight hose tail
1 x Remco 13 mm (1/2 inch) elbow hose tail
Optional adapters - Remco pump fitting adapter pack (Code 723.QTS-556) includes:
2 x 3/4 inch Quick Attach x 1/2 inch NPT(M) male thread adapters
Temperature limits:
Liquid temperatures to 60°C (140°F) max
Motor is not equipped with thermal protection
For user safety, optimal performance and maximum motor life the motor surface temperature should not exceed 82°C (180°F)
Materials:
Polypropylene body
Santoprene diaphragms
Viton valves
Applications include:
Heavy duty spraying
High pressure cleaning
Agricultural spraying
Liquid fertiliser
General industrial use
More:
Demanding industrial pump environments require precise engineering and quality components -“ the Remco ProFlo FatBoy was designed with both
To maximize the potential of all five diaphragm chambers, Remco matched it with a high torque, completely sealed motor
For its size, it is one of the most powerful and productive diaphragm pumps you can buy, pumping up to 26.5 lpm
If your specifications call for low noise, smooth operation, continuous operation and high capacity, the FatBoy will meet your challenge
