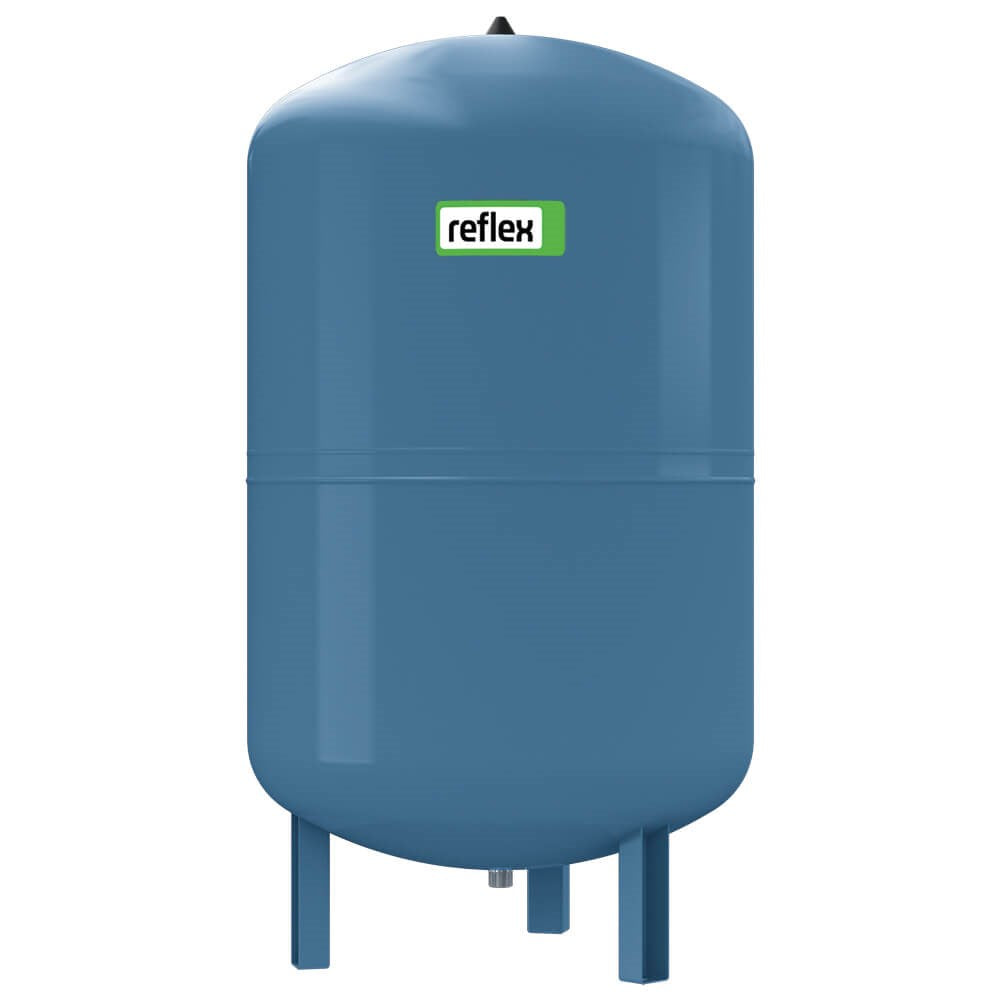

REF- DC200 - Reflex Pressure Tank Dc Range 10 Bar 200 Litres
REF- DC200 - Reflex Pressure Tank Dc Range 10 Bar 200 Litres
Reflex

REF- DC200 - Reflex Pressure Tank Dc Range 10 Bar 200 Litres

Available
SKU: 68.806055
$1,336.00 NZD excl GST

Reflex Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 200L
  • Nominal Draw-off: 72L
  • Continuous max. temp 70°C
  • Continuous max. pressure: 10 Bar
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 634 mm
  • Height: 883mm
  • Net Weight: 40Kg
  • System Connection: GI
  • Colour: BLUE RAL 5007

Materials of Construction
Pressure Tank Steel
Internal Coating Yes. Food Grade Approved
Water Connection Stainless Steel
Air Valve Stem Brass
Support Legs Steel (Bolt Down) x 3
Membrane Food Grade Approved
Bladder N/A
