Piusi K24 aluminium flow meter 1 inch BSP(M/F) for petrol, diesel and kerosene 7 to 120 lpm 20 bar (290 psi)
Couldn't load pickup availability

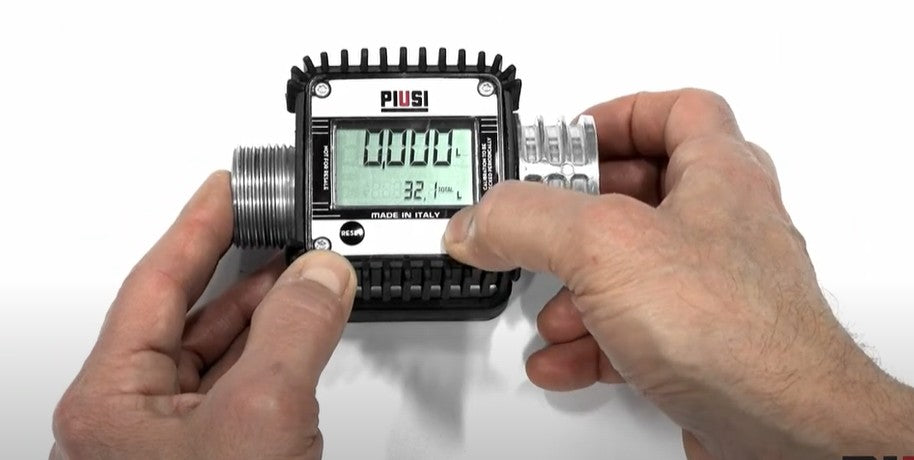

Piusi K24 aluminium digital flow meter
1 inch BSP (M/F) ports
Includes 1 inch BSP(F/F) socket
7 to 120 lpm
20 bar (290 psi)
Applications:
- petrol, kerosene and diesel
- low-viscosity fluids
Data:
- easy to install, in line or at the end of a delivery pipe
- display screen that can be adjusted to various positions for easy reading
- sturdy casing and a sealed electronic card
- polypropylene turbine
- impulse-type signals: single channel, reed switch
Electronic card with LCD display:
- 5-digit partial from 0.1 to 99999
- 6-digit total from 1 to 999999
- flow rate indication
- repeatability 0.2%
- loss of pressure <0.03 bar at 120 lpm
- can be calibrated
Special battery included:
- Piusi 018021000 battery for K24 flow meter No.1 3v lithium (order code 48.018021000)
