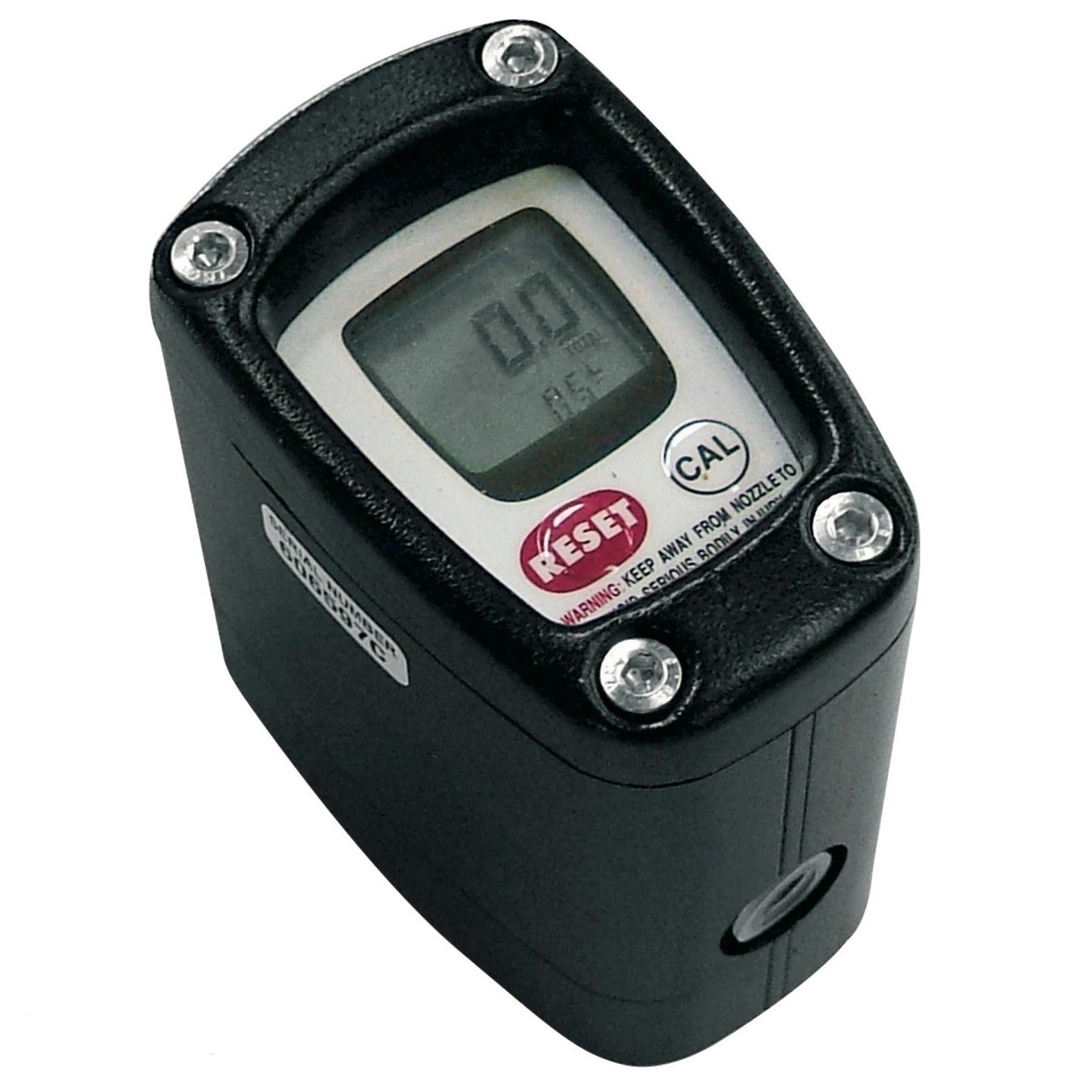

Piusi K200 digital flow meter 1/8 inch BSP(F) for grease, oil and diesel 0.1 to 2.5 lpm 500 bar (7200 psi)
Couldn't load pickup availability
Regular price
$794.00 NZD
excl GST
Piusi K200 grease, diesel and oil electronic flow meter
1/8 inch BSP(F)
Performance:
0.1 to 2.5 lpm
500 bar (7200 psi)
Repeatability 0.2 %
Loss of pressure <0.5 bar at maximum flow rate
Data:
Oval gear electronic flow meter in acetal resin
For controlling the non commercial dispensing of low, medium and high viscosity fluids
Body with aluminium measuring chamber
Free contact signal pulser (reed switch), single channel
Display:
5 digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
8 digit non resettable total (h=5 mm) from 1 to 99999999
Applications include:
Antifreeze, Biodiesel, diesel, grease and oil
1/8 inch BSP(F)
Performance:
0.1 to 2.5 lpm
500 bar (7200 psi)
Repeatability 0.2 %
Loss of pressure <0.5 bar at maximum flow rate
Data:
Oval gear electronic flow meter in acetal resin
For controlling the non commercial dispensing of low, medium and high viscosity fluids
Body with aluminium measuring chamber
Free contact signal pulser (reed switch), single channel
Display:
5 digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99
8 digit non resettable total (h=5 mm) from 1 to 99999999
Applications include:
Antifreeze, Biodiesel, diesel, grease and oil
