Ketta JAY1 standard hand pump for 20 litre to 210 litre drums

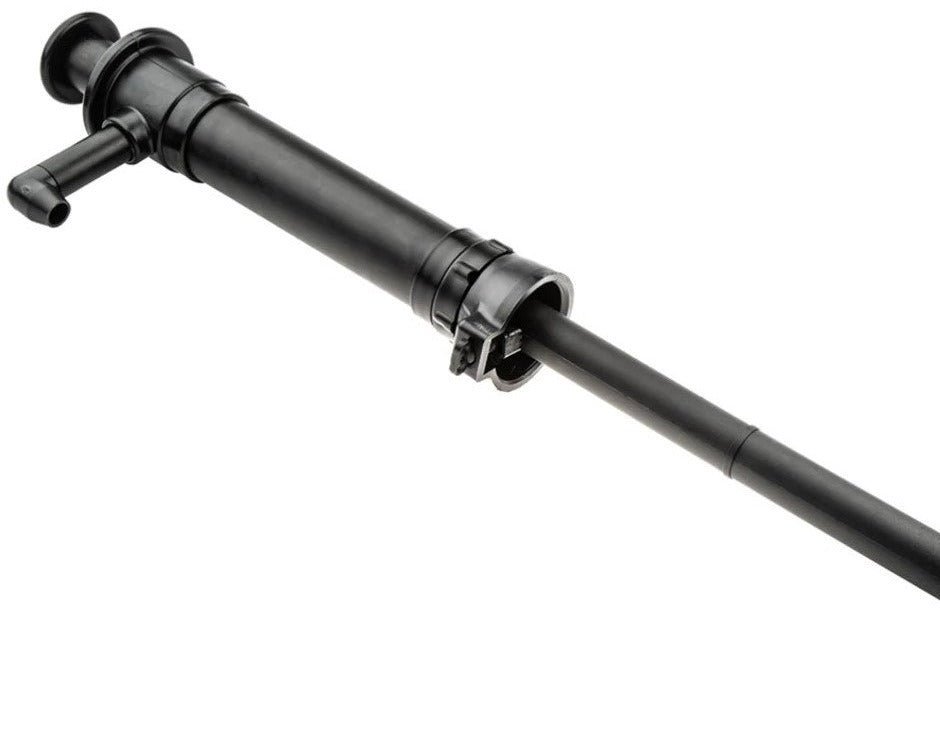

Ketta JAY1 hand pump
Heavy duty manual piston-less polythene displacement pump which discharges on the down stroke
Supplied complete with anti-drip nozzle, thread adaptor for 12 mm bore hose, multi-adaptor for raised screw neck closures, adaptor to fit standard plastic drum internal thread and telescopic dip-tube to suit any drum from 20 litre to 210 litre
Features and benefits:
Heavy duty piston-less polythene displacement pump which discharges on the down stroke
Supplied complete with anti-drip nozzle, thread adaptor for 12 mm bore hose, multi-adaptor for raised screw neck closures, adaptor to fit standard plastic drum internal thread and telescopic dip-tube to suit any drum from 20 litre to 210 litre
The pump is self-priming and has a displacement of approximately 250 ml per stroke
Typical applications:
Hydraulic hand pumps do not require power and are ideal on manufacturing and processing plants to empty out large barrels into smaller measuring vessels, storage can and canisters
Hydraulic hand pumps are available in a wide range of pump styles and flow rates with varying pressure options tailored to different applications
FAQs:
How do hydraulic hand pumps work?
Hydraulic hand pumps contain a reservoir of fluid that is typically activated by a lever
When the lever is pumped downward it generates pressure on the fluid which leads to it being displaced through the outlet
When the lever is pumped up it sucks in water from the inlet, resetting the reservoir for the next activation
Hydraulic hand pumps contain safeguard valves that prevent fluid being sucked back in through the outlet
What does single acting and double acting refer to in pumps?
Positive displacement pumps differ from centrifugal pumps in that they use mechanical energy to transfer fluid
If the displacement is on the forward stroke only then the pump is single acting
However if the pump displaces liquid on the forward and return stoke then the pump is double acting
