Ketta HL188FV-E diesel engine 11.6 hp with 1 inch keyed shaft (recoil and electric start)
Regular price
$1,762.00 NZD
excl GST
Couldn't load pickup availability

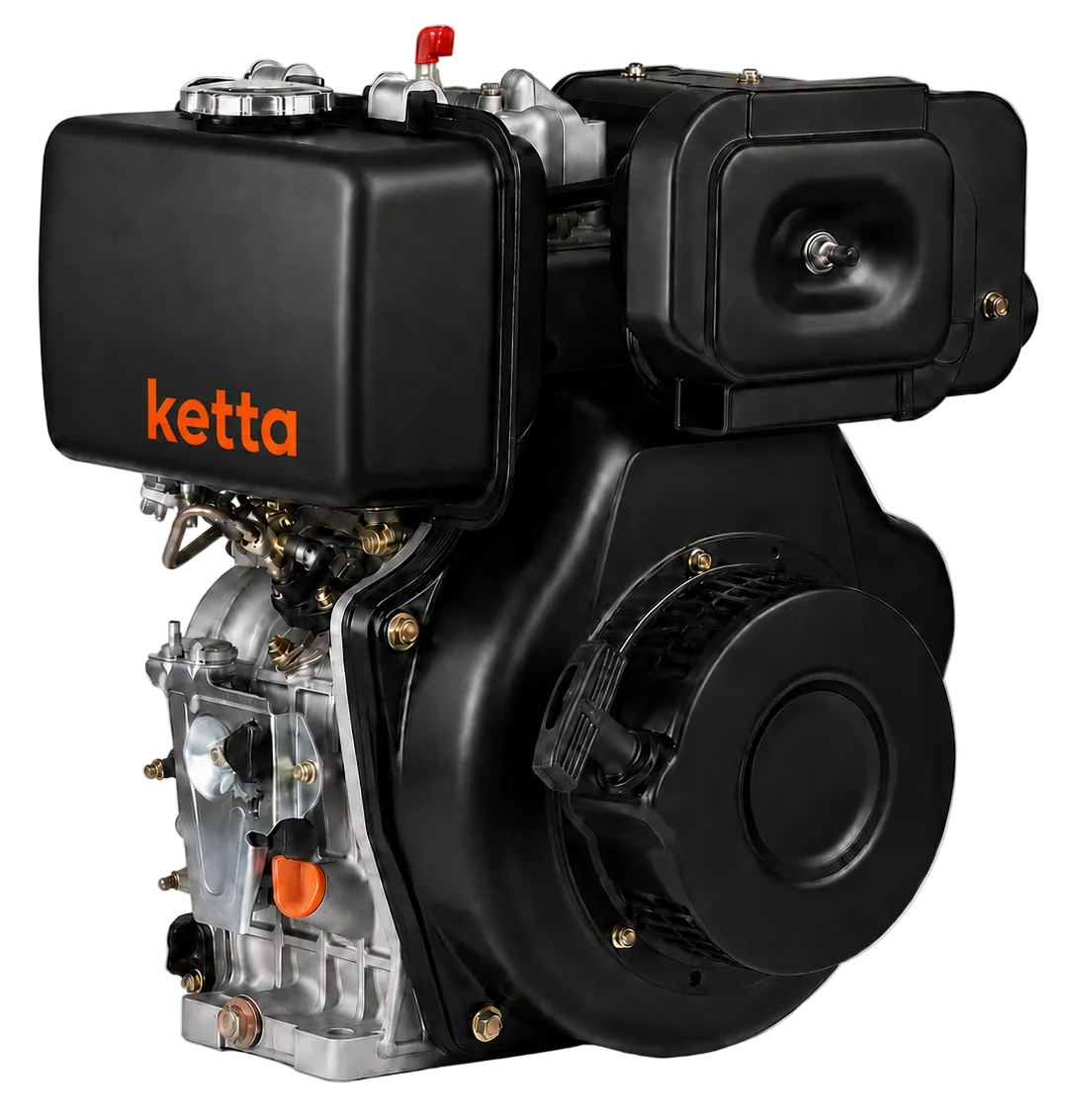

Ketta air-cooled diesel engine
HL188FV-E11.6 hp diesel engine with electric start and 1 inch keyed shaft
A robust single-cylinder diesel engine for pumps, agricultural machinery and general industrial equipment. The HL188FV-E combines direct-injection fuel efficiency, forced-air cooling and a standard 25.4 mm keyed output shaft.
474 ccEngine displacement
11.6 hpMaximum output at 3,600 rpm
1 inchKeyed output shaft
Electric startConvenient key-start operation
Key features
Direct-injection dieselEfficient combustion for dependable output and economical operation.
Electric-start configurationConvenient starting for fixed and mobile equipment installations.
Standard keyed shaft25.4 mm / 1 in crankshaft for straightforward coupling to compatible equipment.
Forced-air coolingFlywheel fan cooling supports reliable operation without a liquid cooling system.
Heavy-duty lubricationCombined forced and splash lubrication protects internal components.
Compact industrial powerSuitable for water pumps, agricultural equipment, generators and machinery.
Large fuel tank5.5 litre capacity supports extended operation between refuelling.
High compression design20.5:1 compression ratio with a vertical four-stroke engine layout.
Engine output
Engine speed
Maximum output
Continuous output
3,000 rpm
8.0 kW / 11.0 hp
7.0 kW / 9.5 hp
3,600 rpm
8.5 kW / 11.6 hp
7.5 kW / 10.2 hp
Technical data
- Model
- HL188FV-E
- Engine type
- Single-cylinder, vertical four-stroke air-cooled diesel
- Combustion system
- Direct injection
- Displacement
- 474 cc
- Bore × stroke
- 88 × 78 mm
- Compression ratio
- 20.5:1
- Starting system
- Electric start
- Output shaft
- 25.4 mm / 1 inch keyed shaft
- Power take-off
- Crankshaft
- Rotation
- Counterclockwise viewed from output shaft
- Cooling system
- Forced air by flywheel fan
- Lubrication
- Forced and splash lubrication
- Fuel tank capacity
- 5.5 litres
- Engine oil capacity
- 1.6 litres
- Fuel consumption
- Approximately 303 ml/kWh at 3,600 rpm
- Dimensions
- 417 × 470 × 494 mm
- Dry weight
- Approximately 50 kg
Output figures are manufacturer ratings measured under specified test conditions. Actual installed output and fuel consumption can vary with engine speed, load, installation, altitude, temperature and maintenance. Confirm coupling dimensions before installation.
