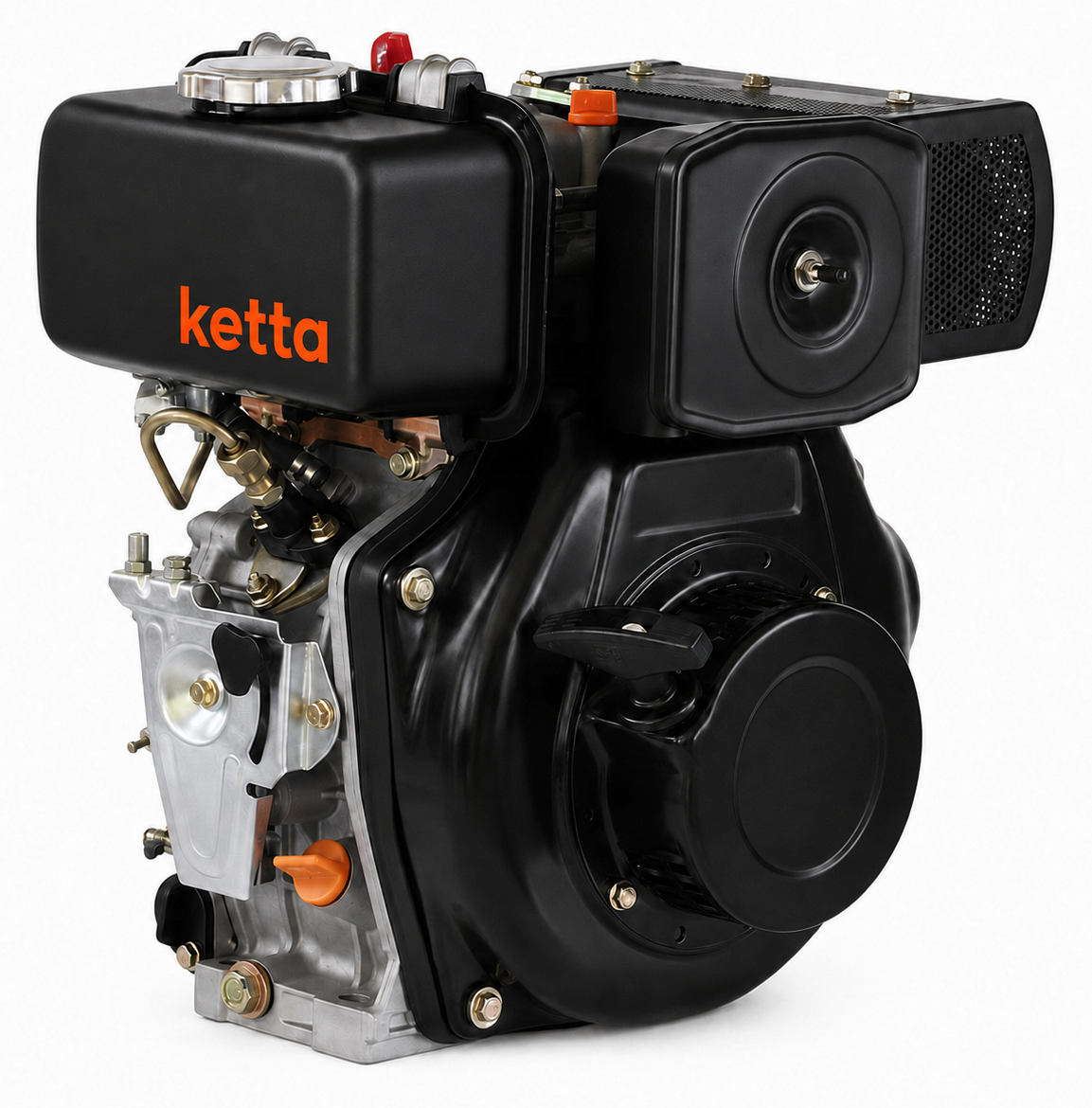

Ketta HL178FA diesel engine 6.0 hp with 3/4 inch keyed shaft (recoil and electric start)
Regular price
$1,223.00 NZD
excl GST
Couldn't load pickup availability
Ketta air-cooled diesel engine
HL178FA6.0 hp diesel engine with 3/4 inch keyed shaft
A compact single-cylinder diesel engine for pumps, agricultural machinery and general industrial equipment. The HL178FA combines direct-injection fuel efficiency, forced-air cooling and a standard 19.05 mm keyed output shaft.
306 ccEngine displacement
6.0 hpMaximum output at 3,600 rpm
3/4 inchKeyed output shaft
Recoil startSimple manual starting
Key features
Direct-injection dieselEfficient combustion for reliable power and economical operation.
Recoil startingSimple self-contained starting without a battery or external electrical system.
Standard keyed shaft19.05 mm / 3/4 inch crankshaft for compatible pumps and machinery.
Forced-air coolingFlywheel fan cooling supports reliable operation without liquid coolant.
Heavy-duty lubricationCombined forced and splash lubrication protects internal components.
Compact industrial powerSuitable for water pumps, agricultural equipment and general machinery.
3.5 litre fuel tankPractical onboard fuel capacity for portable and fixed installations.
High compression design20:1 compression ratio with a vertical four-stroke engine layout.
Engine output
Engine speed
Maximum output
Continuous output
3,000 rpm
4.0 kW / 5.5 hp
3.7 kW / 5.0 hp
3,600 rpm
4.4 kW / 6.0 hp
4.0 kW / 5.5 hp
Technical data
- Model
- HL178FA
- Engine type
- Single-cylinder, vertical four-stroke air-cooled diesel
- Combustion system
- Direct injection
- Displacement
- 306 cc
- Bore × stroke
- 78 × 64 mm
- Compression ratio
- 20:1
- Starting system
- Recoil start
- Output shaft
- 19.05 mm / 3/4 inch keyed shaft
- Power take-off
- Crankshaft
- Rotation
- Counterclockwise viewed from output shaft
- Cooling system
- Forced air by flywheel fan
- Lubrication
- Forced and splash lubrication
- Fuel tank capacity
- 3.5 litres
- Engine oil capacity
- 1.1 litres
- Fuel consumption
- Approximately 335 ml/kWh at 3,600 rpm
- Dimensions
- 421 × 383 × 450 mm
- Dry weight
- Approximately 38 kg
Output figures are manufacturer ratings measured under specified test conditions. Actual installed output and fuel consumption can vary with engine speed, load, installation, altitude, temperature and maintenance. Confirm coupling dimensions before installation.
