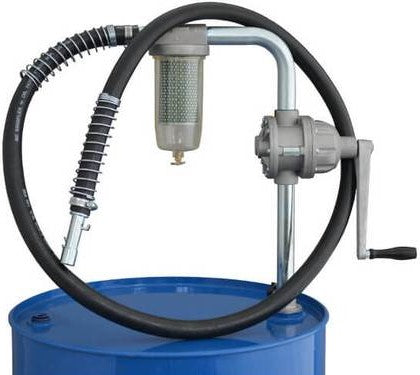

Ketta Big 100 rotary drum pump and filter for petrol, diesel and light oils with 2 m x 25 mm (1 inch) rubber hose 100 lpm

Ketta Big 100 rotary drum pump with hose and clear bowl fuel filter kit

For pumping petrol, diesel, kerosene and oil

1 litre per rotation aprox

100 lpm max

Geared so that for every turn of the handle a relatively large volume of liquid is pumped

Fits most standard 15, 30 and 55 US gallon drums

Features:

- Ketta clear bowl fuel filter with drain cock at base (code 21.3025K)

- 2 m x 25 mm (1 inch) rubber discharge hose

- non-drip dispensing nozzle

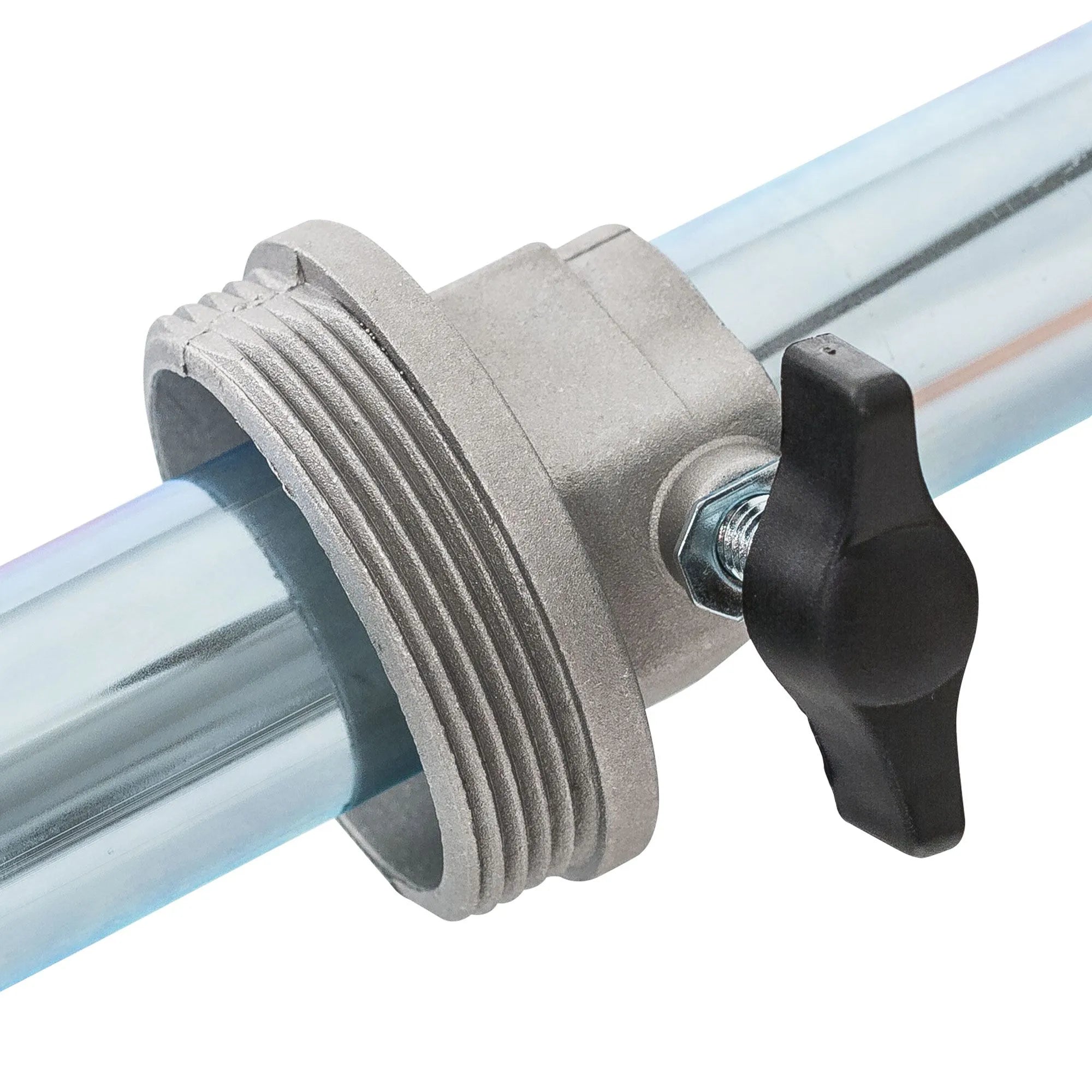

- 2 inch NPT(M) standard drum bung adapter nut

- 3-piece suction tube x 1 m total length

- inlet port 32 mm (1-1/4 inch) OD

- outlet port 25 mm (1 inch) OD curved spout

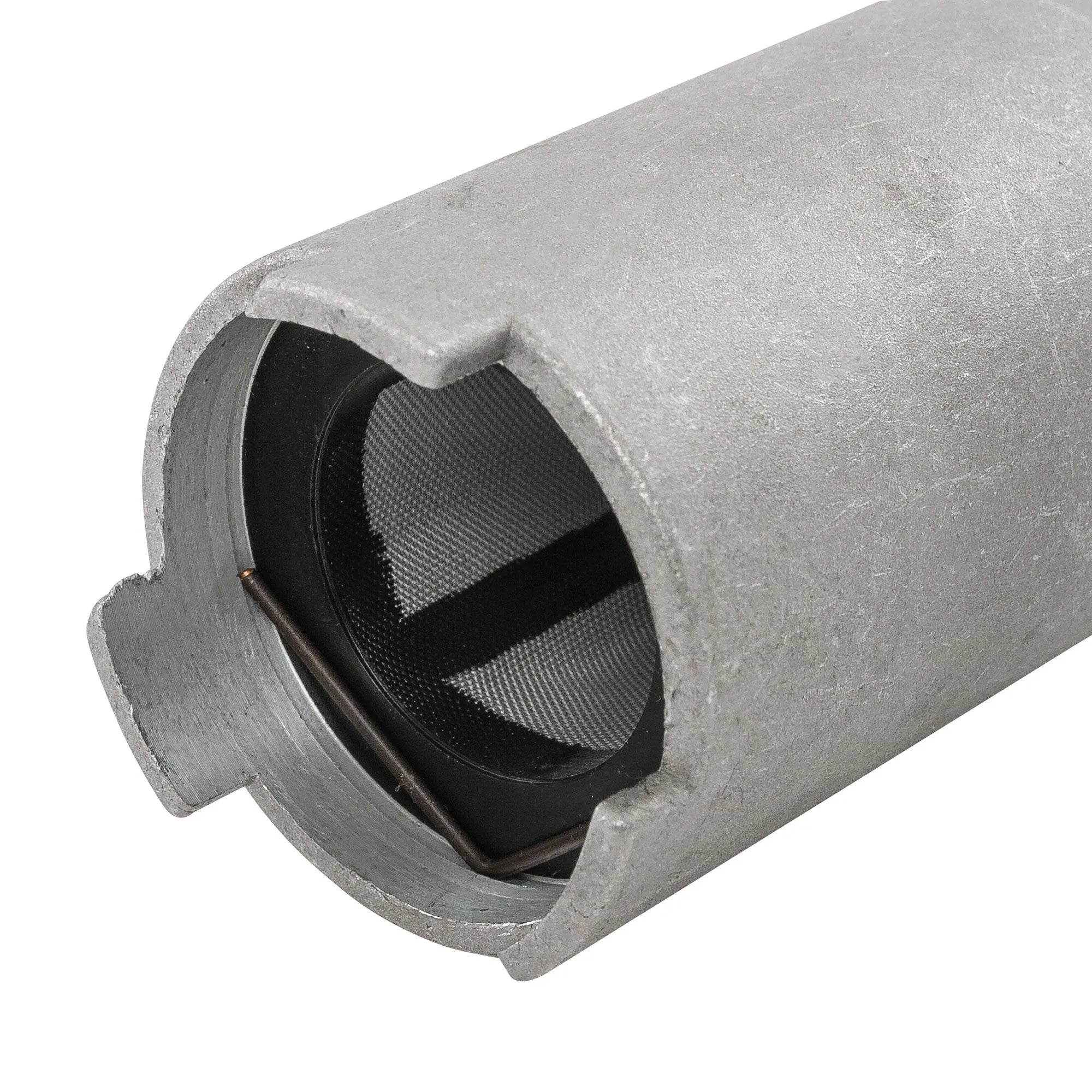

- suction filter

Materials:

- wetted parts: cast aluminum, plated steel, NBR and PE

Performance:

- maximum oil viscosity 500 SSU (or SAE 30)

- pumps counter-clockwise and clockwise - discharge in both directions

- 15 m head max

- 50 m horizontal flow max

- max fluid temperature to 60 degrees C

Warning:

- not suitable for: solvents, alkalis, acids or any water-based fluids
