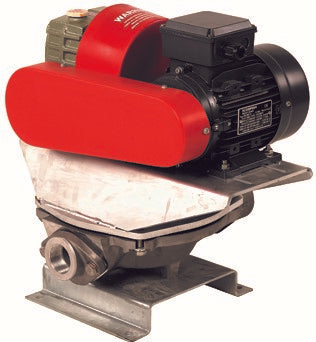

KDS 32-200 electric diaphragm pump 240v 1-1/4 inch BSP(F) ports 33 lpm 0.6 bar (9 psi)

KDS 32-200 electric 240v diaphragm pump
1-1/4 inch BSP(F) ports
0.37 kW
2.8 amps
Solids handling to 20 mm
Self-priming to 7.5 m (25 ft)
6 m head (20 ft)
33 lpm
Dimensions:
400 x 340 x 415 mm (L x W x H)
Overview:
KDP Pumps are a range of mechanical diaphragm pumps, sold and supported by Condor Pumps
They incorporate a heavy duty gearbox coupled to an eccentric block to actuate the diaphragm, making them appropriate for heavy-duty applications
The pump is belt-driven by pulleys which enables it to use a variety of drive options, including electric motors and petrol and diesel engines for 2 inch and 3 inch pumps
With the ability to self-prime, handle solids and run dry, they have a wide range of applications
Features:
Suction lifts to 7.5 m
Rapid self priming
Will run dry without damage
Heavy duty
TEFC electric motors fitted as standard
Special electric motor enclosures as an options
Will operate on snore
Will handle abrasive liquids
Will pass solids up to 80% port size
Compact construction
Applications:
Dewatering excavation
Raw sewage
Pool maintenance and construction
Waste treatment plants
Oil skimming
Bore desludging
Oil/Water separators
Machine sumps
Priming large centrifugal pumps
Industrial wastes
Liquid manure
Septic tank cleaning
Drum emptying
Abattoirs and poultry processing
Spillage mop up
