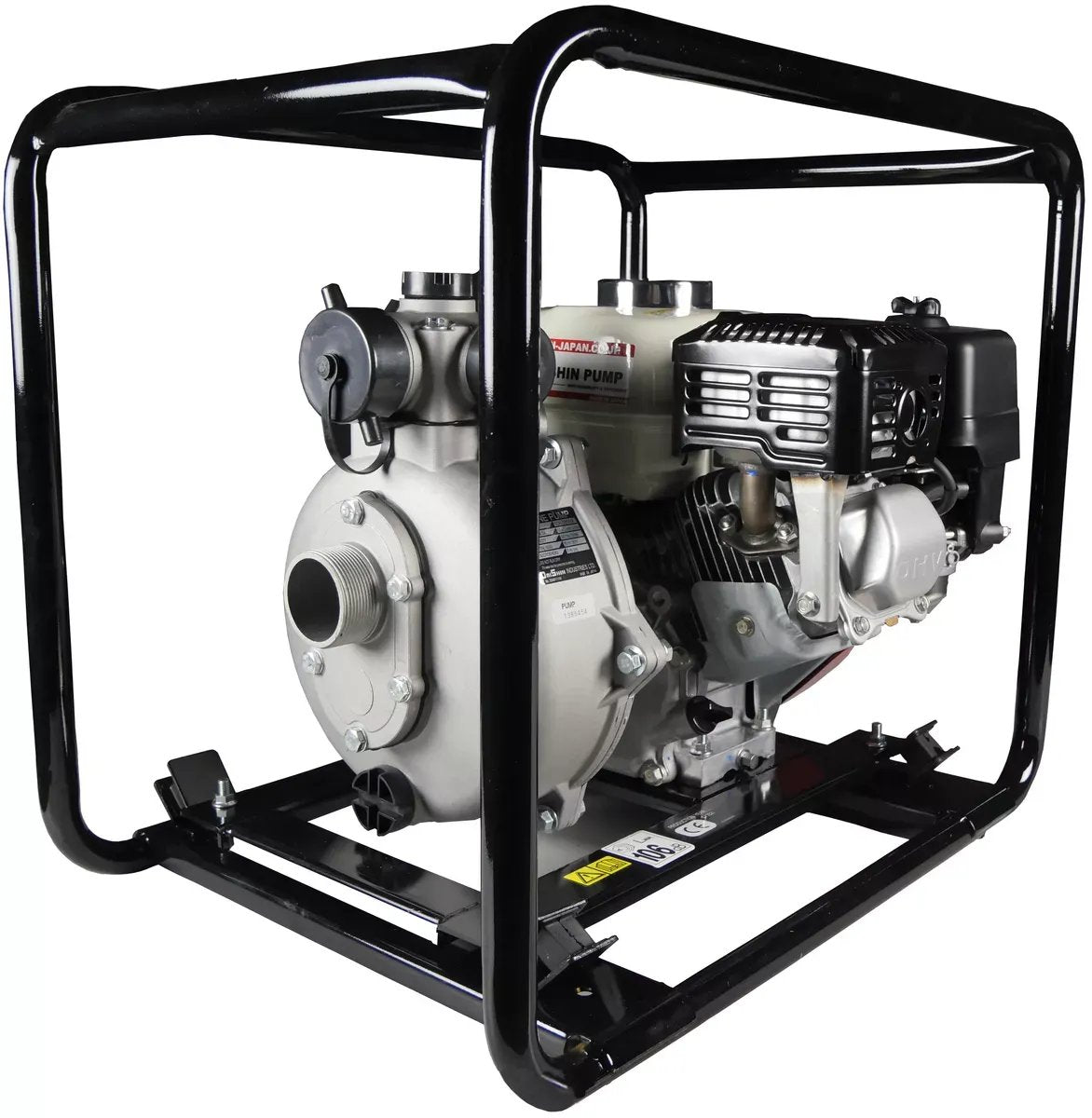

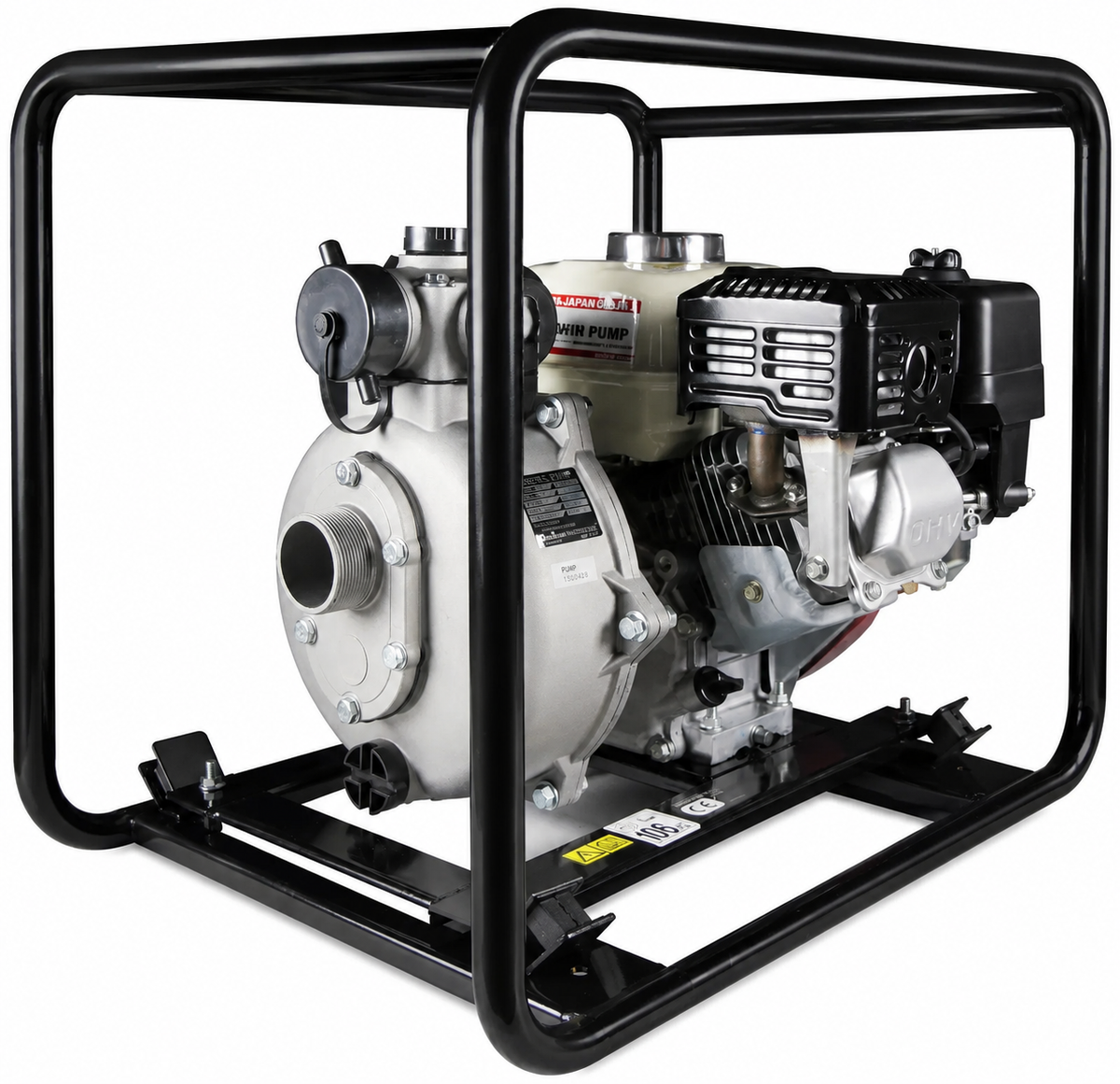

Honda Powered SCH 2 inch BSP(M) twin impeller pump and 100 m hose kit Honda GX200 5.5 hp 350 lpm 80 m head

Honda Powered SCH 2 inch BSPM twin impeller pump and 100 m hose kit

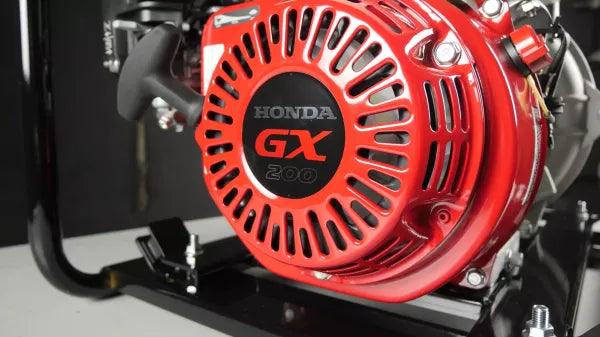

Honda GX200 5.5 hp

Engine type Honda GX200UT2PXU

Pump type Daishin SCH-5080HX

Pump performance:

- 80 m head max, 350 lpm max

- self-priming to 8 m

- solids handling to 6 mm

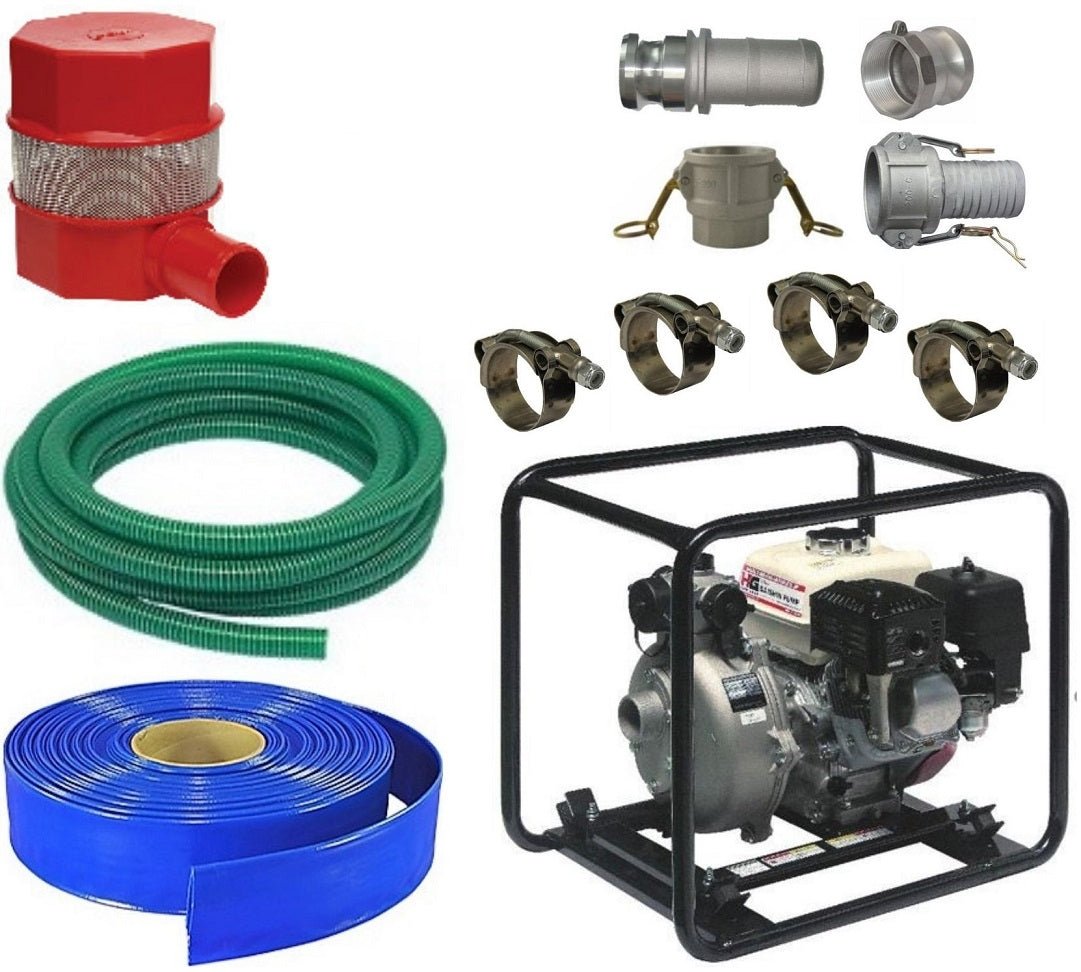

Kit includes:

- Honda Powered SCH-5080HX high head twin impeller water pump Honda GX200 5.5 hp (code 10.2755)

- Arag floating suction filter for 50 mm hose (code AG3073050)

- FoxHose 50 mm (2 inch) x 1 m length SD suction and delivery hose 4 bar 58 psi (code 13.4151-001) x 6 m length

- FoxHose blue lay flat hose 50 mm (2 inch) 100 m coil (code 13.4158-100) x 100 m length

- Camlock coupling kit x 4 pieces

- Jumbo hose clamp kit x 4 pieces

Pump ports:

- inlet 2 inch BSP(M)

- outlet: 2 inch BSP(M) and 2 x 1-1/2 inch BSP(M)

Pump materials:

- pump body aluminium

- mechanical seal carbon-ceramic

- impeller cast iron FC150

- volute cast iron FC150

*** Important: a safety pressure relief valve should be used in the discharge line to protect the pump from damage ***
