Honda Powered SMD80HX 3 inch BSP(M) mud diaphragm pump Honda GX160 4.8 hp (wheel kit) 245 lpm 16 m head

Honda Powered 3 inch BSP(M) mud and sludge diaphragm pump and wheel kit
Model SMD-80HX
Honda GX160 4.8 hp
Single diaphragm type pump
OK to run dry

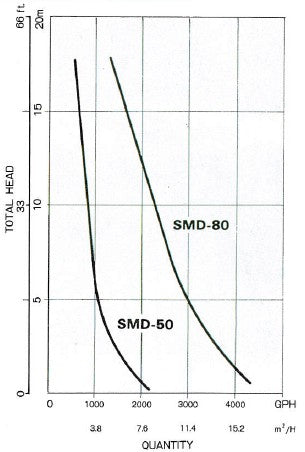

Performance:
Self-priming to 6 m
245 lpm (65 gpm)
16 m head (23 psi)
Nitrile rubber diaphragm
Die-cast aluminium pump body
Die-cast aluminium gear case
Grease packed gear unit (factory pre-filled)
Easy-to-replace diaphragm and check valve
Hose tails, hose clips and suction strainer included
Important note - when operating SMD series diaphragm pumps:
- the discharge line must be completely open at all times
- do not use lay-flat type hose on the discharge line
- any restrictions, kinks or obstructions on the discharge line
will cause serious damage to the pump
- do not install an on/off valve on the discharge line
Dimensions:
660 x 420 x 540 mm (L x W x H)
Applications:
Muddy water
Sandy water
Sewage
Effluent
Septic tanks
Waste
Excretion
Fats and edible oils
