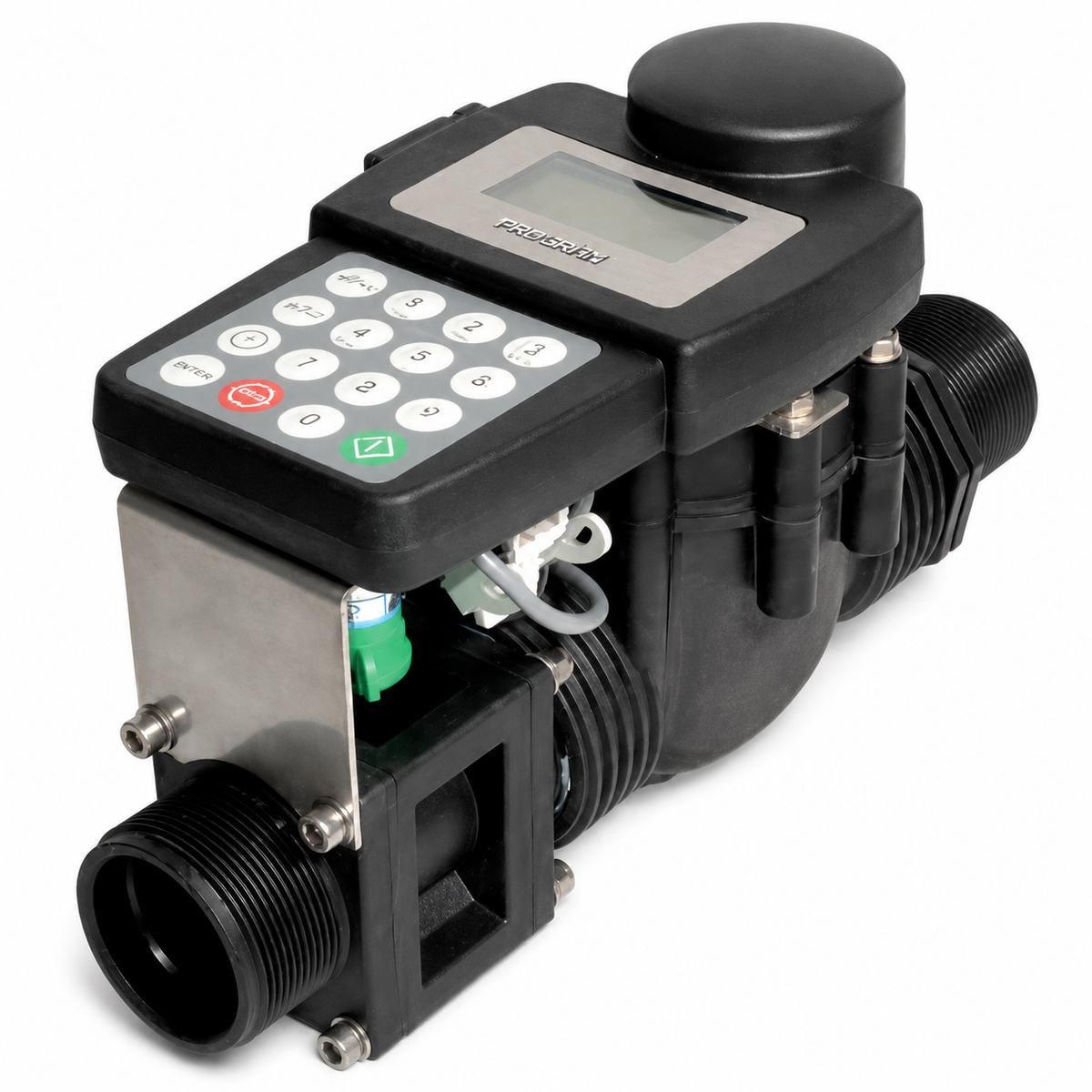

Green ProFlow automatic batch meter control system 2 inch BSP(M) 500 lpm 12 bar (174 psi)
Couldn't load pickup availability
Regular price
$2,672.00 NZD
excl GST
Green ProFlow automatic batch meter control system
2 inch BSP(M) ports
500 lpm max
12 bar (174 psi)
9 v battery (included)
Turbine type flow meter
Automatic stop once the desired flow is reached
USB port to export data
NO/NC contact output and input signal
Can be connected to filling level sensor
Dimensions:
267.5 x 188.5 x 135.5 mm (L x W x H)
Applications include:
Water
Chemicals
Detergents
Data:
Green ProFlow with turbine flowmeter and programmable automatic stopping allows programming the desired amount of liquid transfer
Once the set amount is reached, the system automatically stops the flow
Supplied with a 2 inch BSP(M) threaded coupling
9v battery power supply included or with a 12VDC external power supply
Digital display, USB port to export the operating data, NO/NC contact output and input signal for connection to the filling level sensor
Flow rates up to 500 lpm (132 gpm) and maximum operating pressure of 12 bar (174 psi)
2 inch BSP(M) ports
500 lpm max
12 bar (174 psi)
9 v battery (included)
Turbine type flow meter
Automatic stop once the desired flow is reached
USB port to export data
NO/NC contact output and input signal
Can be connected to filling level sensor
Dimensions:
267.5 x 188.5 x 135.5 mm (L x W x H)
Applications include:
Water
Chemicals
Detergents
Data:
Green ProFlow with turbine flowmeter and programmable automatic stopping allows programming the desired amount of liquid transfer
Once the set amount is reached, the system automatically stops the flow
Supplied with a 2 inch BSP(M) threaded coupling
9v battery power supply included or with a 12VDC external power supply
Digital display, USB port to export the operating data, NO/NC contact output and input signal for connection to the filling level sensor
Flow rates up to 500 lpm (132 gpm) and maximum operating pressure of 12 bar (174 psi)
