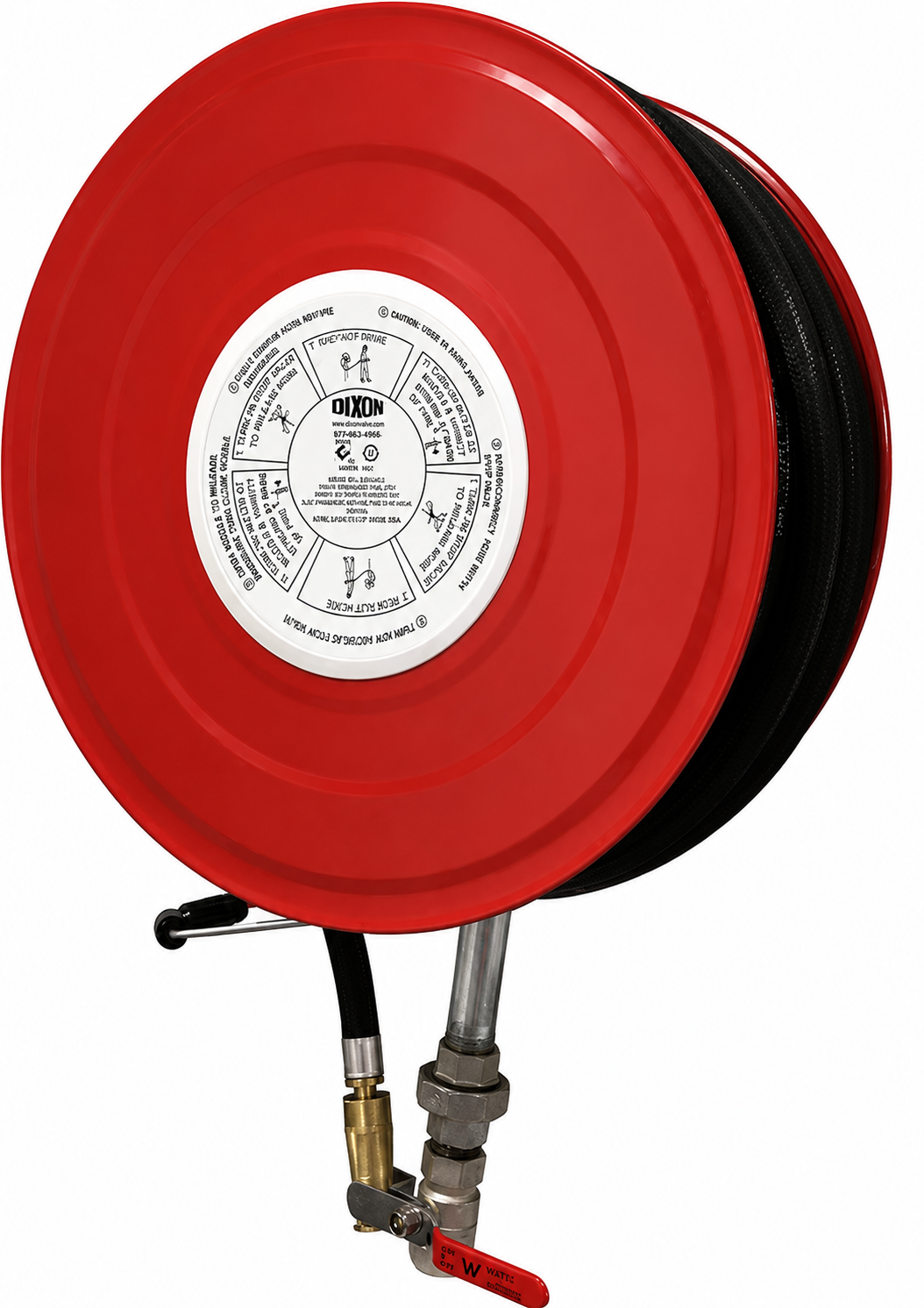

Dixon FFS-HR-36B wall mount fire hose reel with 36 m x 19 mm (3/4 inch) hose and brass nozzle

Dixon FFS-HR-36B wall mount fire hose reel with 36 m x 19 mm (3/4 inch) hose and brass nozzle
Red colour reel
Galvanised mild steel reel
Working pressure 1,500 kPa 15 bar (217 psi)
Service test pressure metric 2,000 kPa 20 bar (290 psi)
Specifications:
Minimum discharge rate 0.45 l/s @ 220kpa
Tested to 1.7 MPa as per AS/NZS 1221:1997
Hose tested in accordance with AS1180.5
Drum diameter 460 mm
25 mm BSP inlet pipe
Fixed Mounting
Application:
Water service only
Features:
Factory assembled with 36 mtr hose x 19 mm
Twist operation brass hose nozzle
Galvanised and coated mild steel body
Corrosion resistant waterway
Watermark certified stop valve
Installation:
Mounting instructions provided with unit
To be installed in accordance with AS 2441
Box dimensions of 55 x 50 x 33 cm
Approvals:
Conforms to AS/NZS 1221: 1997
