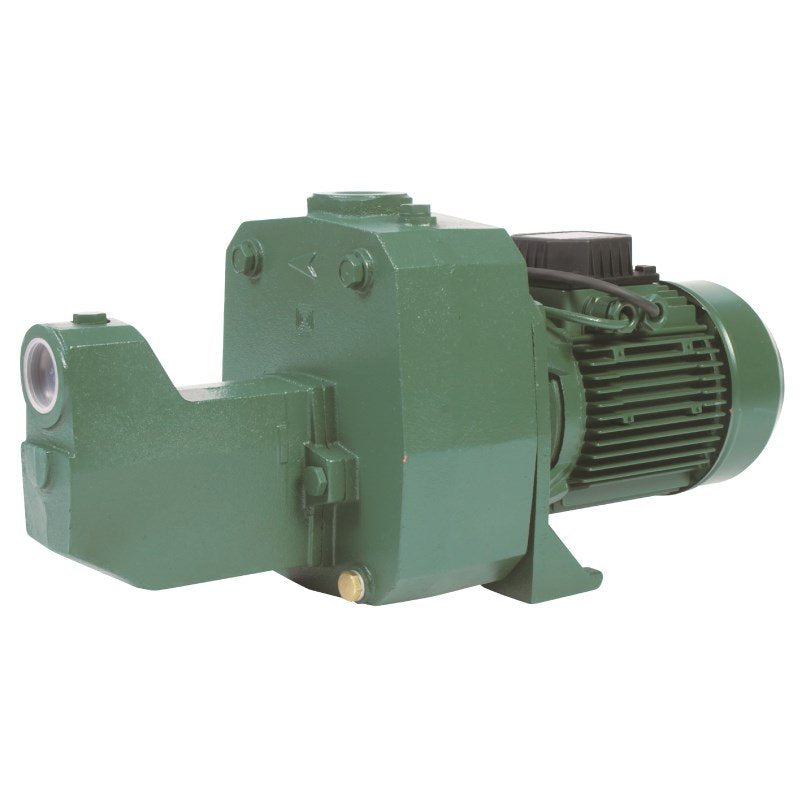

DAB-251T - Pump Surface Mounted Cast Iron 120L/MIN 62M 1.85KW 415V

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.85kW, 2.5hp, 415V, max hd 62m, max flow 120L/m Ports 1 1/4” BSPF In, 1" BSPF Out
3 phase pumps require contactor and overload.

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump

• Location: The pump should be located as close to the water source as possible and should be protected from the elements
• Piping: Only use pipe that is in good condition and free of rust or scale
• Types of Pipe: Plastic or galvanised steel can be used with jet pumps
• Water to Pump Piping: All offset piping should slope upwards from water source to pump.
