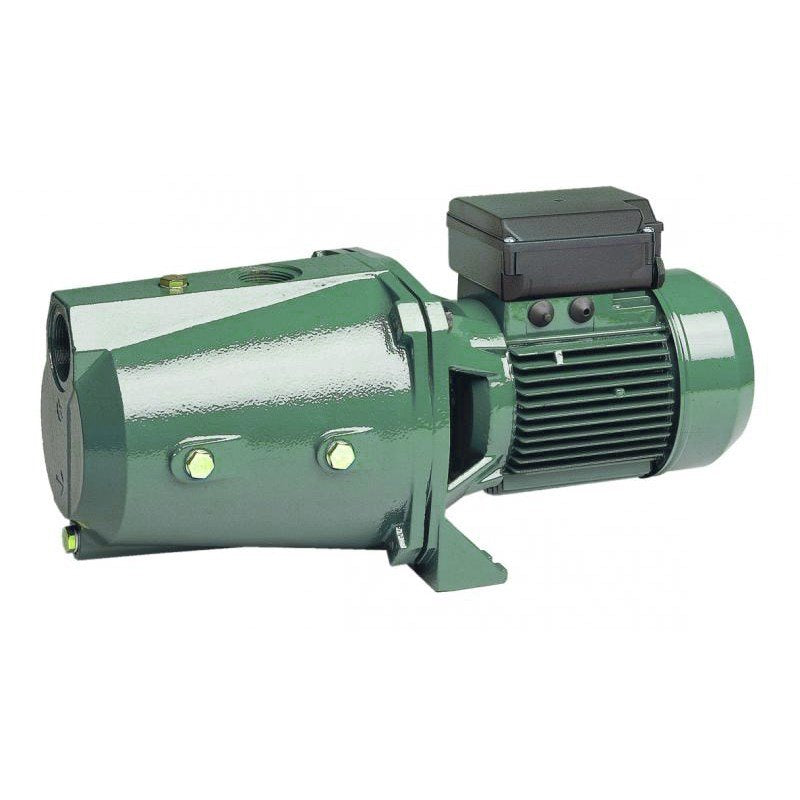

DAB-200T - Pump Surface Mounted Cast Iron 175L/MIN 41M 1.47KW 415V

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.47kW, 2.0hp, 415V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
3 phase pumps require contactor and overload.

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump

• Location: The pump should be located as close to the water source as possible and should be protected from the elements
• Piping: Only use pipe that is in good condition and free of rust or scale
• Types of Pipe: Plastic or galvanised steel can be used with jet pumps
• Water to Pump Piping: All offset piping should slope upwards from water source to pump.
