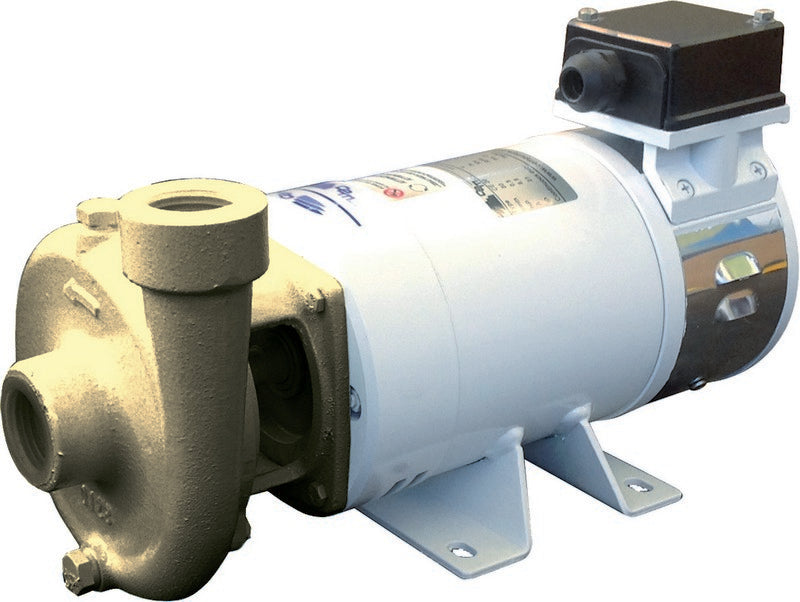

CEM B-CE series bronze centrifugal pump 12/24v DC 1/2 inch BSP(F) ports 40-80 lpm 90°C max liquid temperature

CEM B-CE series bronze centrifugal pump 12/24v DC 1/2 inch BSP(F) ports 40-80 lpm
Centrifugal electric pumps made in Bronze widely used in the nautical sector to transfer and/or deliver fresh water and sea water to all the plants where a large flow rate is needed such as: air conditioning, cooling and circulation etc.
Materials:
Pump body: Bronze
Motor support: Bronze
Impeller: Bronze
Shaft: AISI 316 Stainless steel
Mechanical seal: ceramic / graphite / NBR (special corrosion-proof)
Motor:
Direct Current:
Permanent magnet electric motor 12/24V, Protection IP23, Insulation Class F, Continuous Duty (S1)
Alternate Current:
Induction electric motor, Protection IP55, Insulation Class F, Continuous Duty (S1)
Scope:
Liquid free of solid impurities
Temperature range of the liquid: from + 0 to + 90 °C
Max. suction depth: 7 m
Static pressure inside the pump body: 6 bar max
