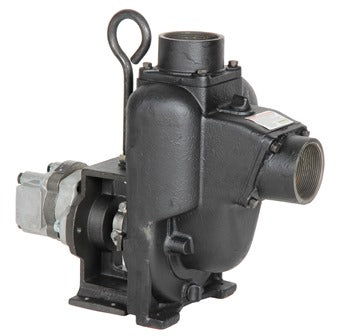

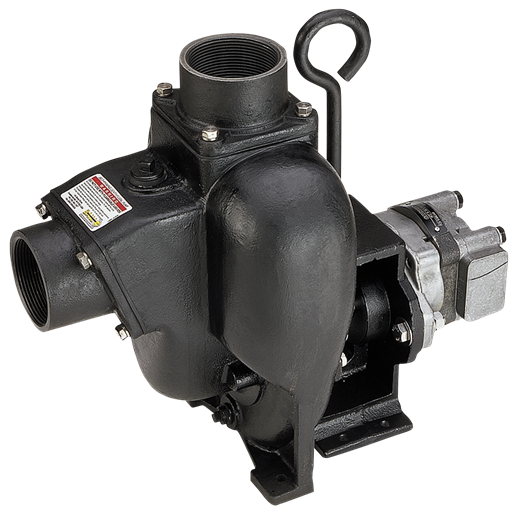

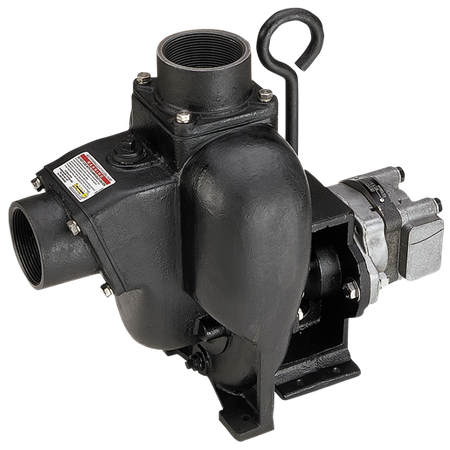

Banjo 300PIHY 3 inch NPT(F) hydraulic driven cast iron pump 1323 lpm 43.4 m head

Banjo 300PIHY 3 inch NPT(F) hydraulic driven cast iron pump 1323 lpm 43.4 m head
Model 300PIHY
Dynamically balanced cast iron impeller
Replaceable inlet and outlet flanges
Carbon ceramic mechanical seal with stainless steel cup and spring with FKM (viton type) rubber
Optional 28.18025SD heavy duty silicone carbide semi-trash mechanical seal

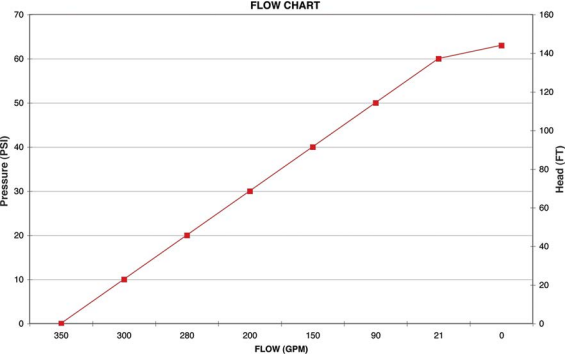

Pump performance:
1323 lpm (350 gpm)
43.4 m head
4.34 bar (63 psi)
21 hp Tyrone UM16 hydraulic motor
Hydraulic requirements:
Open hydraulic system
Minimum 41 bar (600 psi) hydraulic pressure
Maximum 21 bar (300 psi) hydraulic pressure
Minimum 34 lpm (9 gpm)
Maximum 49 lpm (13 gpm)
Dimensions:
512 x 270 x 442 mm (L x W x H)
Applications include:
Pumping Bentonite*, Hydro seeding, Spray-on liquid grass, Liquid fertiliser, Effluent
For your interest:
This pump is commonly used for pumping Bentonite
*Bentonite is a material composed of clay minerals, predominantly montmorillonite with minor amounts of other smectite group minerals, commonly used in drilling mud
Bentonite swells considerably when exposed to water, making it ideal for protecting formations from invasion by drilling fluids
Montmorillonite forms when basic rocks such as volcanic ash in marine basins are altered
