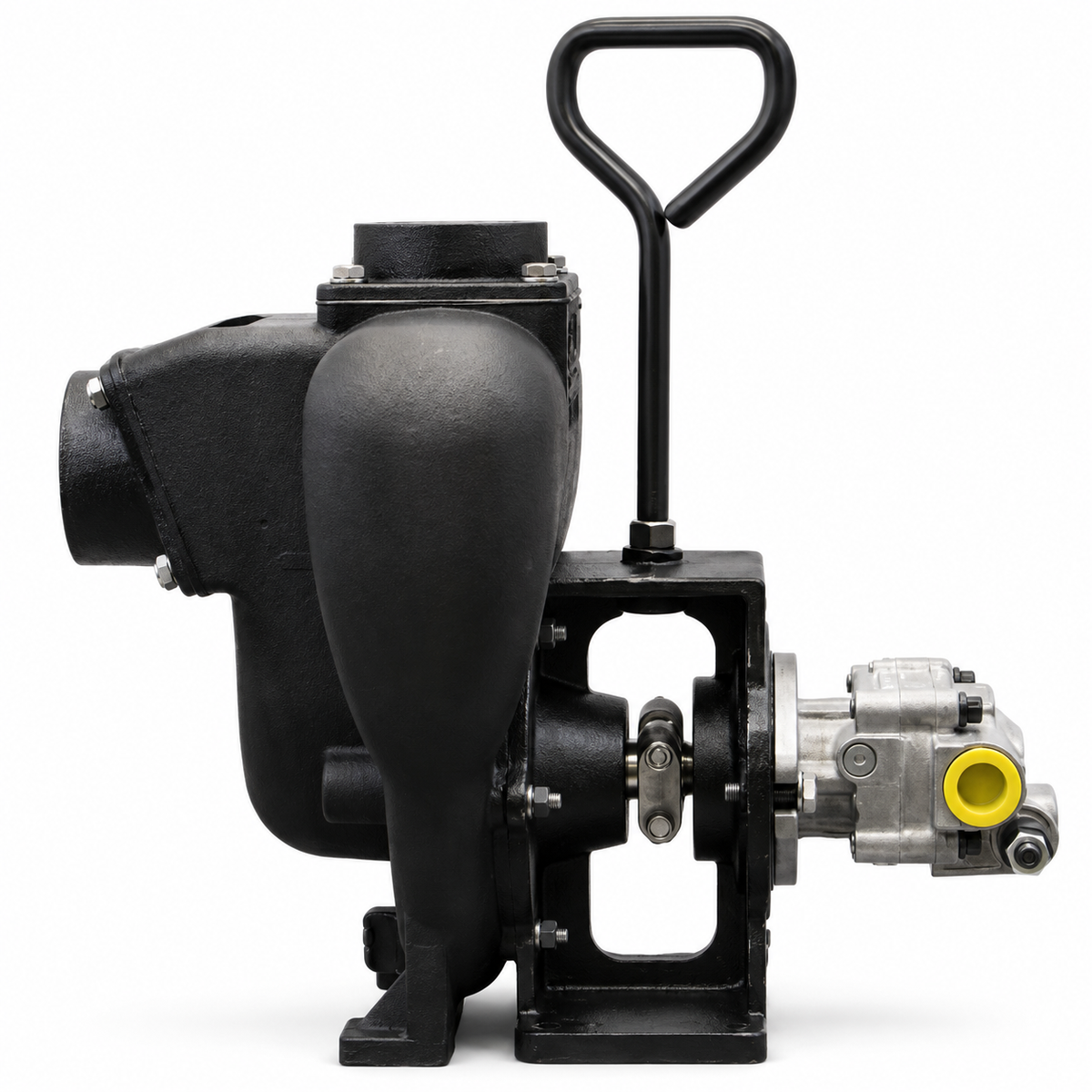

Banjo 200PIHY 2 inch NPT(F) hydraulic driven cast iron pump 718 lpm 31 m head

Banjo 2 inch NPT(F) hydraulic driven cast iron pump
Model 200PIHY
Dynamically balanced cast iron impeller
Replaceable inlet and outlet flanges
Carbon ceramic mechanical seal with stainless steel cup and spring with FKM (viton type) rubber

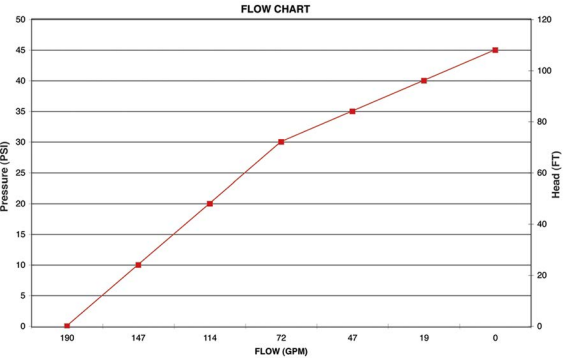

Pump performance:
718 lpm (190 gpm)
31 m head
3.1 bar (45 psi)
12 hp hydraulic motor
Hydraulic requirements:
Open or closed hydraulic system
Minimum 34 bar (500 psi) hydraulic pressure
Maximum 138 bar (2000 psi) hydraulic pressure
Minimum 23 lpm (6 gpm)
Maximum 38 lpm (10 gpm)
For your interest:
This pump is used for pumping Bentonite
Bentonite is a material composed of clay minerals, predominantly montmorillonite with minor amounts of other smectite group minerals, commonly used in drilling mud.
Bentonite swells considerably when exposed to water, making it ideal for protecting formations from invasion by drilling fluids.
Montmorillonite forms when basic rocks such as volcanic ash in marine basins are altered.
