Aro PD10A 1 inch BSP(F) air diaphragm diesel pump and 6 m x 25 mm (1 inch) fuel hose and automatic nozzle kit 197 lpm 8.3 bar (120 psi)

Aro PD10A 1 inch BSP(F) air diaphragm diesel pump with 6 m x 25 mm (1 inch) diesel hose and automatic fuel nozzle kit

197 lpm 8.3 bar (120 psi)

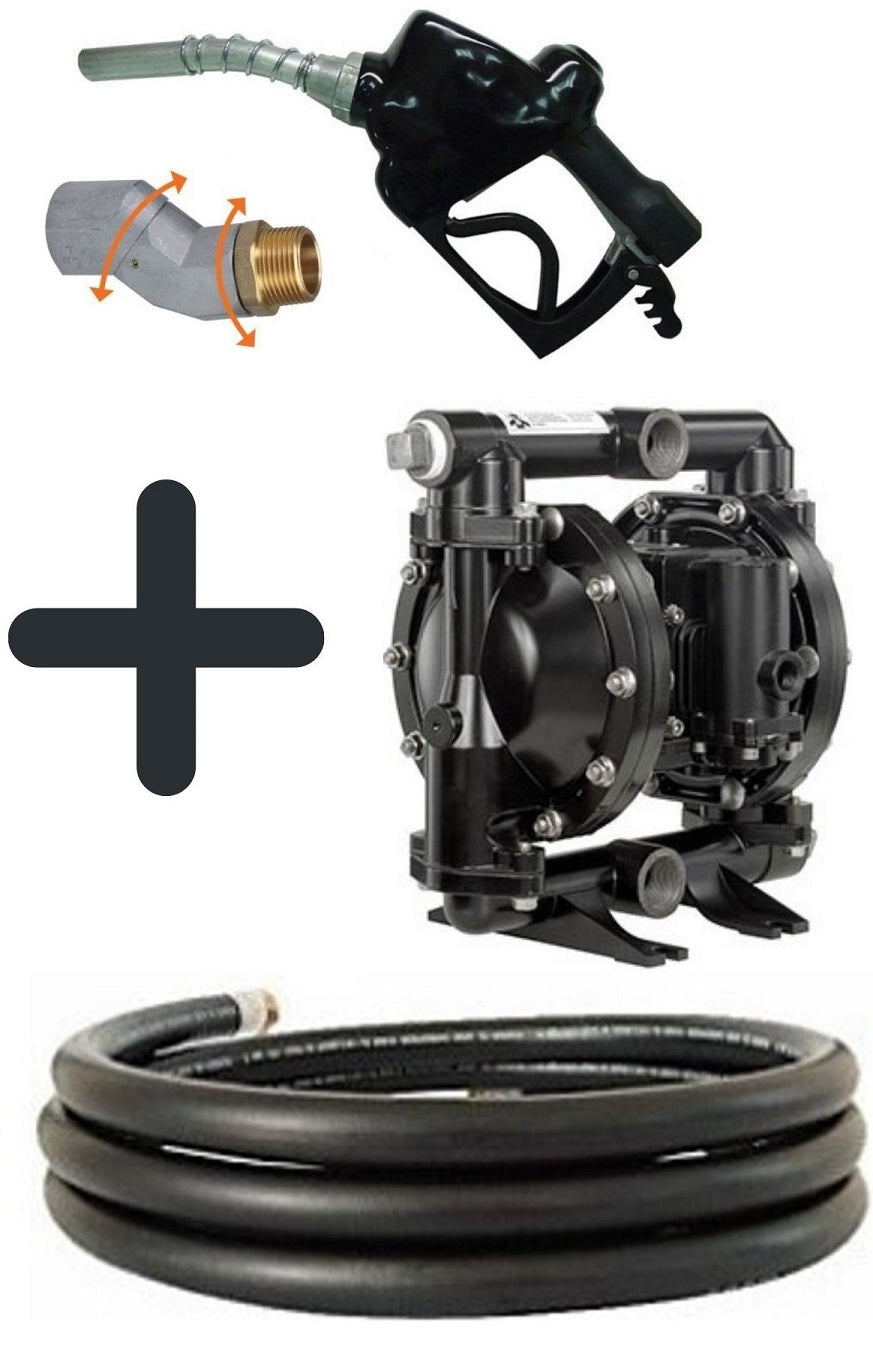

Kit includes:

- Aro PD10A 1 inch BSP(F) aluminium air operated diaphragm pump 197 lpm 8.3 bar 120 psi (code 87.PD10A-BAP-GGG)

- Carder MF-1000 AUTO Black 1 inch BSP(F) automatic diesel fuel nozzle (code 255.N1LF)

- Ketta GT in-line swivel joint Aluminium 1-1/2 inch BSP(M) x 1-1/2 inch BSP(F) (code 12.3073)

- FoxHose diesel and oil hose 6 m length 25 mm (1 inch) ID 1 inch BSPP(M) threads both ends (code 12.3064)

Pump data:

Aro PD10A 1 inch BSP(F) aluminium air operated diaphragm pump

1 inch BSP(F) fluid ports

1/4 inch NPT(F) air port

Ratio: 1:1

Performance:

197 lpm (52 gpm) max

8.3 bar (120 psi) max

Self-priming to 5.7 m dry

Solds handling to 3.3 mm (1/8 inch)

Displacement per cycle 0.88 litres (0.232 gallons)

Materials:

Aluminium centre section

Aluminium pump body

Buna-N diaphragms

Nitrile balls

Nitrile ball seats

Features:

- Simul-Shift„ valve provides ultra-positive, reliable shift signal

- patented 'Unbalanced' air valve ensures no-stall operation

- bolted construction for leak-free fluid handling

- ribless fluid caps to eliminate cracking

- easy service through modular design

Optional accessories:

87.66073-2 air line connection kit: contains piggyback filter / regulator, pipe nipple and 5 ft section of hose

87.67237 diaphragm failure detection (DFD)

87.67350 cycle counter kit

87.637397 air section service kit

87.637401-XX fluid section service kit
