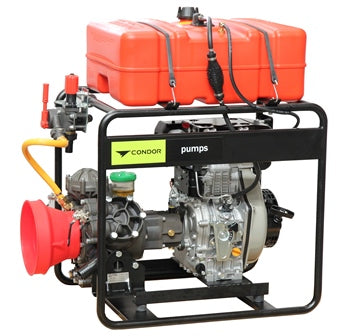

Annovi Reverberi AR303 diaphragm pump Yanmar diesel 45 litre tank (electric start) 30 lpm 40 bar

Annovi Reverberi AR303 diaphragm spray pump

45 litre fuel tank

Yanmar L48N 4.8 hp diesel engine

Electric and recoil start

Battery and leads not included

Annovi Reverberi AR303 diaphragm pump

BlueFlex long life diaphragms - providing over 80% longer life than traditional rubber diaphragms

Performance:

30 lpm (8 gpm)

40 bar (580 psi)

550 rpm

3 hp requirement

Features:

3 diaphragms

60 degrees C max temperature

Self-priming

OK to run dry

Materials:

Anodized aluminium body

BlueFlex long life diaphragms

Pump ports:

1/2 inch BSP(M) outlet port

13 mm (1/2 inch) outlet hose tail

25 mm (1 inch) inlet hose tail

Oil type:

SAE 30 engine oil
