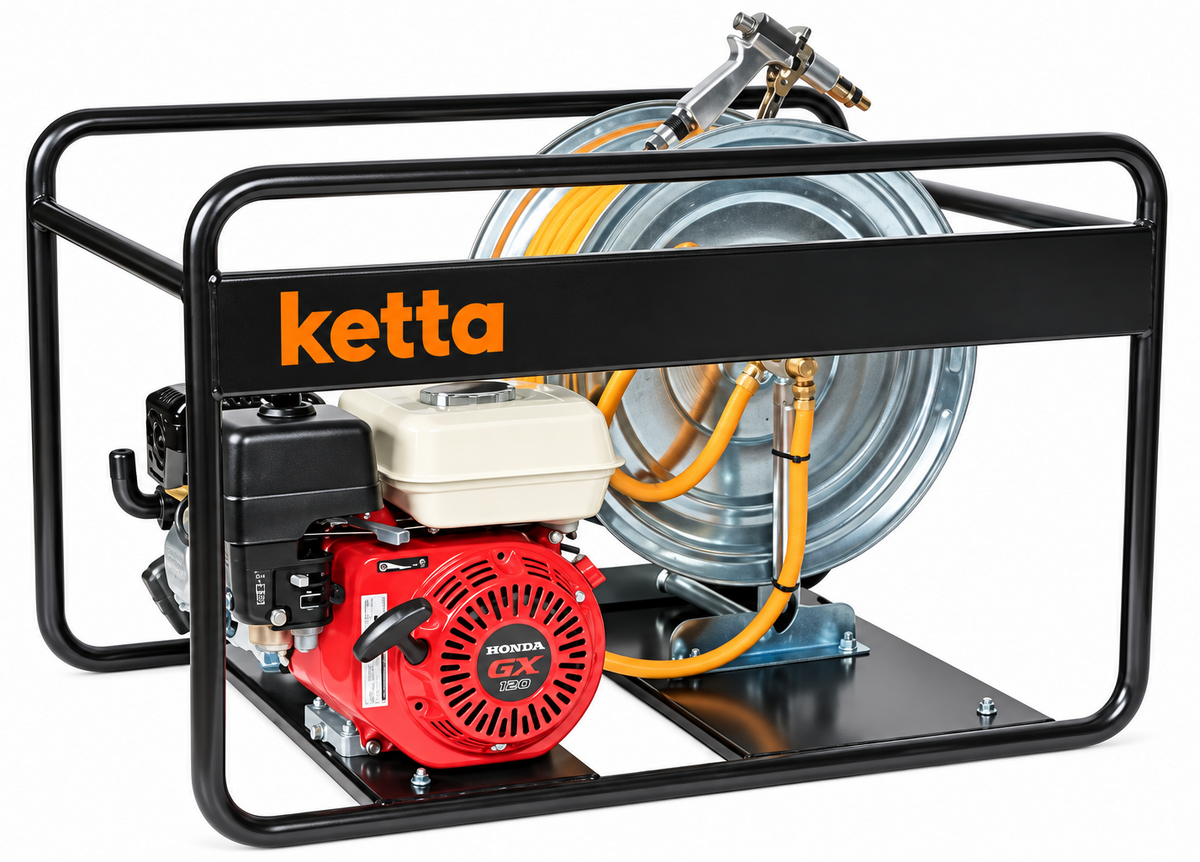

Annovi Reverberi AR303 diaphragm pump and 100 m reel Honda GX160 4.8 hp 30 lpm 40 bar (580 psi)

Annovi Reverberi AR303 diaphragm pump and hose reel kit

Honda GX160 4.8 hp

GR40 control

100 m x 10 mm (3/8 inch) yellow spray hose and K-Pistol

Annovi Reverberi AR303 diaphragm pump

BlueFlex long life diaphragms - providing over 80% longer life than traditional rubber diaphragms

Performance:

30 lpm (8 gpm)

40 bar (580 psi)

550 rpm

3 hp requirement

Features:

3 diaphragms

60 degrees C max temperature

Self-priming

OK to run dry

Materials:

Anodized aluminium body

BlueFlex long life diaphragms

Pump ports:

1/2 inch BSP(M) outlet port

13 mm (1/2 inch) outlet hose tail

25 mm (1 inch) inlet hose tail

Oil type:

SAE 30 engine oil
