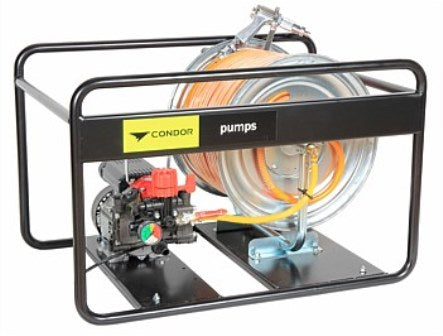

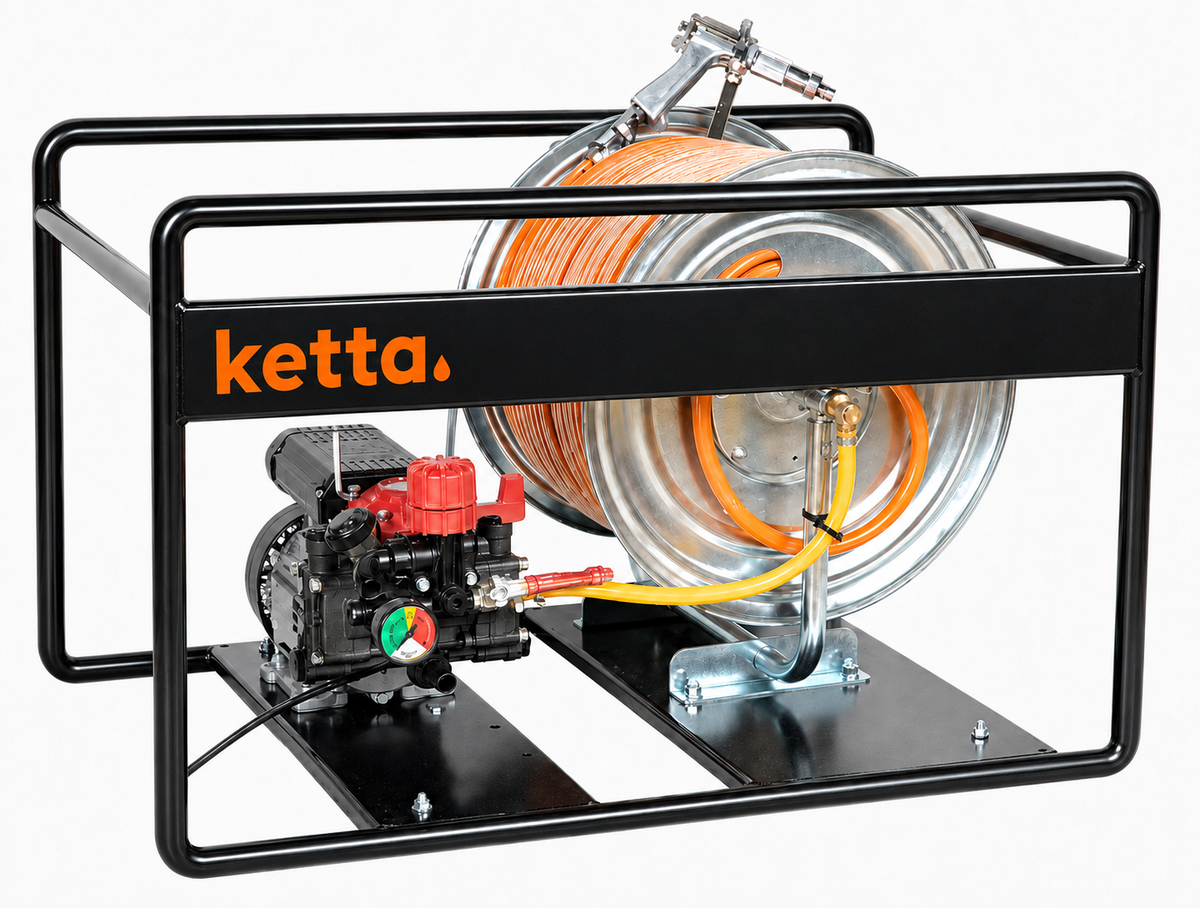

Annovi Reverberi AR252 electric diaphragm pump with 100 m hose and reel 230v 25 lpm 25 bar (362 psi)

Annovi Reverberi AR252 diaphragm spray pump and reel kit

230v electric

GR30 control

Farm duty hose reel

100 m x 10 mm (3/8 inch) spray hose and K-Pistol

Annovi Reverberi AR252 diaphragm pump

BlueFlex long life diaphragms - providing over 80% longer life than traditional rubber diaphragms

Performance:

25 lpm (6.5 gpm)

25 bar (362 psi)

650 rpm

1.42 hp requirement

Features:

2 diaphragms

60 degrees C max temperature

Self-priming

OK to run dry

Materials:

Annodised aluminium body

BlueFlex long life diaphragms

Pump ports:

3/4 inch BSP(M) inlet port

19 mm (3/4 inch) inlet hose tail

1/2 inch BSP(M) outlet port

Oil type and capacity:

SAE 30 engine oil

0.4 litres
